The Trek Marlin 5 Gen 3 is a trail-worthy daily rider that is perfectly suited for everyday adventures, on and off the trail.
The Trek Marlin 5 Gen 3 is a trail-worthy daily rider that is perfectly suited for everyday adventures, on and off the trail.
Trek

Trek Marlin 5 Gen 3 in Mulsanne Blue

$799.00 $849.99 6% off
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

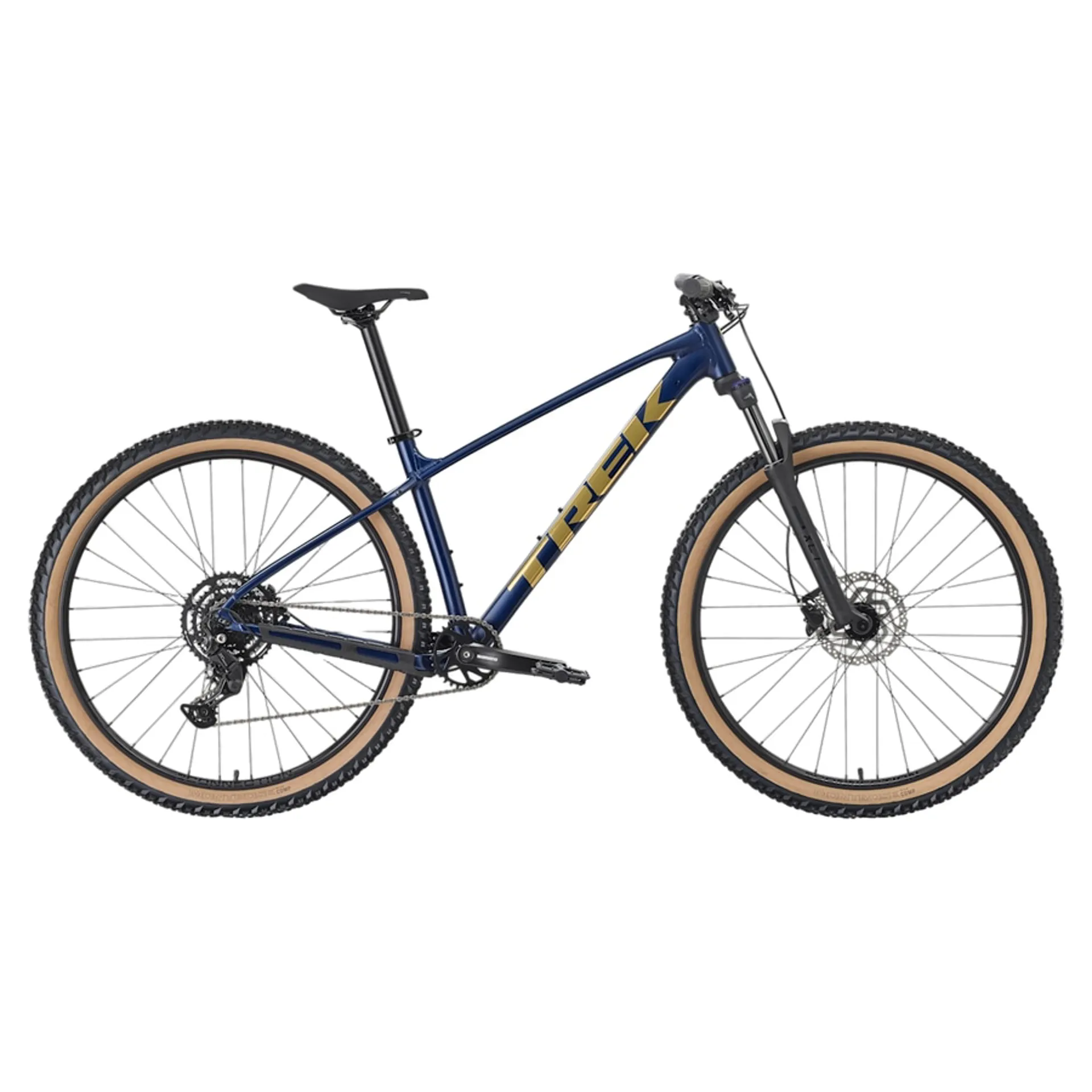

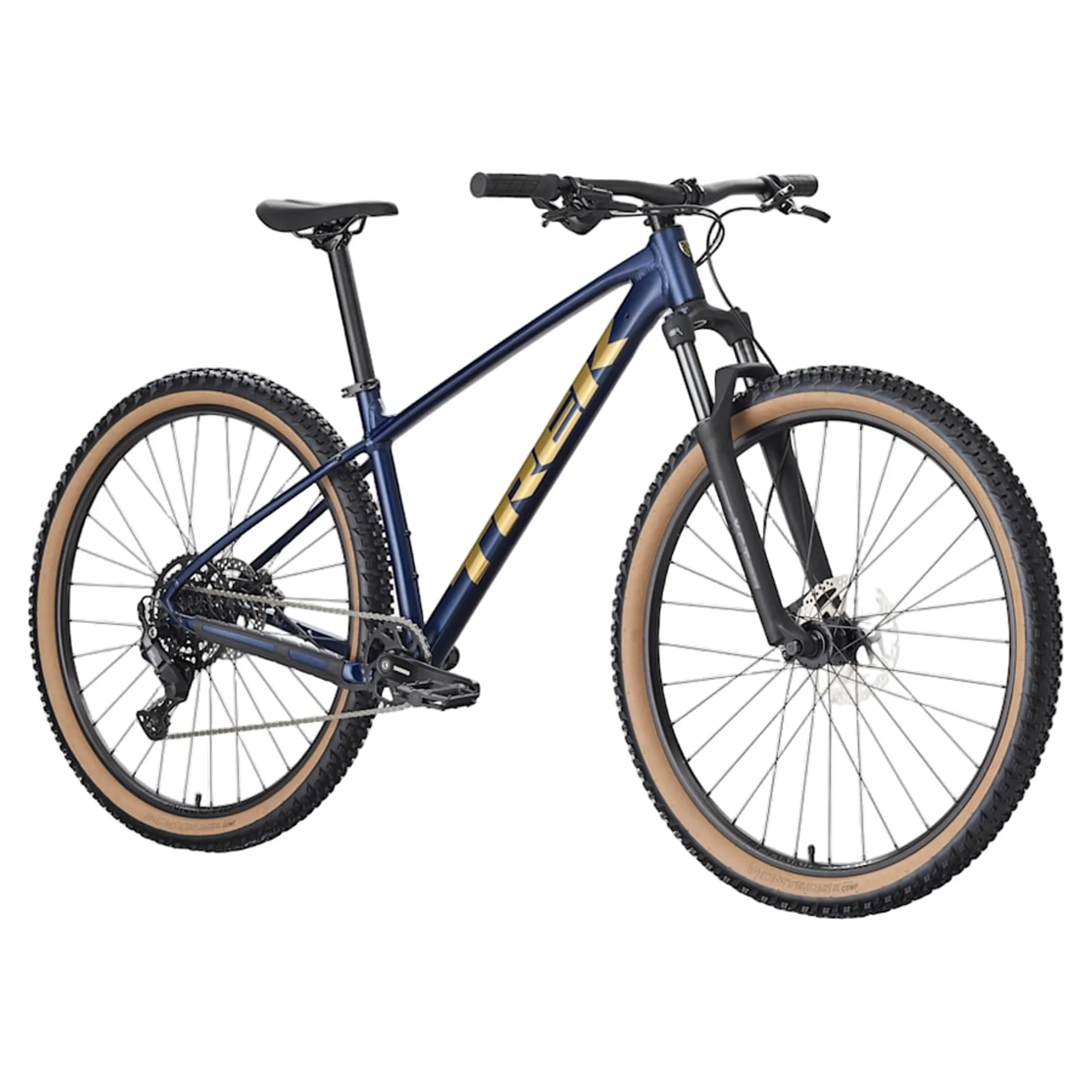

Trek Marlin 5 Gen 3 in Mulsanne Blue

Season:SP26

Brand:Trek

Code:5337024-MB

The Trek Marlin 5 Gen 3 is a trail-worthy daily rider that is perfectly suited for everyday adventures, on and off the trail.

It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike. The frame includes internal shift cable and brake hose routing, which helps cables last longer by protecting them from the elements.

Trek has transitioned to using low-emission aluminum made with renewable energy for this frame, reducing the environmental footprint. Shimano LINKGLIDE technology is engineered for durability while delivering smooth and decisive shifting.

Features:

  • Trail-savvy frame with suspension fork
  • 9-speed Shimano CUES shifting
  • Mounts for rack and kickstand
  • Internal shift cable and brake hose routing
  • Low-emission aluminum construction
  • Shimano LINKGLIDE drivetrain technology
Technical Information
  • Frame
    Size XS: Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew; Size S, M, ML, L, XL, XXL: Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
  • Fork
    Size XS: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5'' wheel, 100 mm QR, 80 mm travel; Size S: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5'' wheel, 100 mm QR, 100 mm travel; Size M, ML, L, XL, XXL: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29'' wheel, 100 mm QR, 100 mm travel
  • Hub front
    Formula DC-20, alloy, 6-bolt, 100x5mm
  • Skewer front
    Trek Thru-Skew
  • Hub rear
    Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
  • Skewer rear
    173x5mm QR
  • Rim
    Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
  • Spokes
    14g stainless steel, black
  • Tire
    Size XS, S: Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''; Size M, ML, L, XL, XXL: Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''
  • Shifter
    Shimano U4000, 9 speed
  • Rear derailleur
    Shimano CUES U4000
  • Crank
    Size XS, S, M, ML: Shimano CUES U4001, 32T, 52mm chainline, 170mm length; Size L, XL, XXL: Shimano CUES U4001, 32T, 52mm chainline, 175mm length
  • Bottom bracket
    Shimano, 73mm, threaded cartridge, 122.5mm spindle
  • Cassette
    Shimano LINKGLIDE LG300, 11-46, 9 speed
  • Chain
    Shimano LG500, 9/10/11 speed
  • Pedal
    VP-536 nylon platform
  • Saddle
    Bontrager Verse Short, stainless steel rails
  • Seatpost
    Size XS, S, M: Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size ML, L, XL, XXL: Bontrager alloy, 31.6mm, 12mm offset, 400mm length
  • Handlebar
    Size XS: Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size S: Bontrager alloy, 31.8mm, 15mm rise, 720mm width; Size M, ML, L, XL, XXL: Bontrager alloy, 31.8mm, 15mm rise, 750mm width
  • Grips
    Trek Line Comp, nylon lock-on
  • Stem
    Size XS, S: Bontrager Comp, 31.8mm, 7 degree, 35mm length; Size M, ML, L: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size XL: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size XXL: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
  • Headset
    Semi-integrated, 1-1/8''
  • Brake
    Shimano MT200 hydraulic disc
  • Brake rotor
    Size XS, S, M, ML, L, XL, XXL: Shimano RT26, 6-bolt, 160mm; Size M, ML, L, XL, XXL: Shimano RT26, 6-bolt, 180mm
  • Brake set
    Shimano MT200 hydraulic disc
  • Weight
    M - 15.10 kg / 33.29 lbs
  • Weight limit
    300 pounds (136 kg)
