The Amflow PL electric mountain bike offers 105 N·m of max continuous torque in an ultra-light build weighing 19.2 kg.
The Amflow PL electric mountain bike offers 105 N·m of max continuous torque in an ultra-light build weighing 19.2 kg.
Amflow

Amflow PL Carbon 800Wh in Satin Silver

$6,499.00 $7,499.00 13% off
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

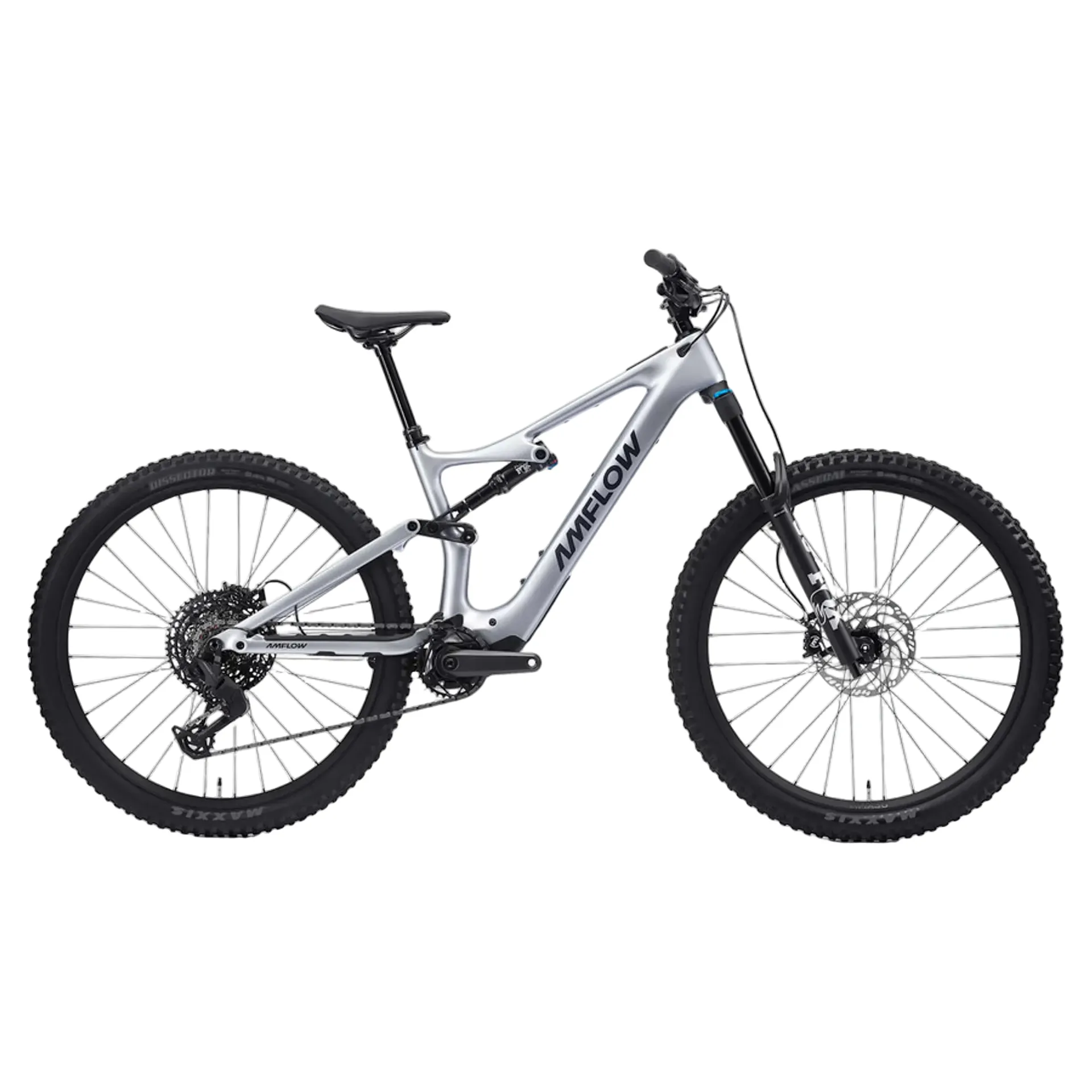

Amflow PL Carbon 800Wh in Satin Silver

Season:SP26

Brand:Amflow

Code:162.01-SS

The Amflow PL electric mountain bike offers 105 N·m of max continuous torque in an ultra-light build weighing 19.2 kg.

With its combination of power, range, weight, and intelligent features, this eMTB is built for the trailblazers. It is a full-power eMTB with a stunningly lightweight body, meticulously designed and crafted to deliver the ultimate ride.

Amflow PL's ultra-light carbon fiber frame weighs just 2.27 kg, for speed and agility. The Avinox M1 Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio. The durable, high-strength polymer material inside the M1 Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built-in, combined with advanced algorithms, it provides a strong, smooth assistance for a wide range of scenarios and conditions.

In addition to traditional assistance modes of Eco, Trail and Turbo, the Avinox Drive System also features a specialized Auto mode, which adapts assistance in real-time based on road conditions and riding position. Once enabled, Auto mode empowers users to tackle a wide variety of terrain types and gradients without having to switch modes. For the most challenging trails or steep inclines, activate Boost mode to instantly get 120 N·m of torque.

Amflow PL's Walk Mode features intelligent walk assistance for easy incline traversing, Auto Hold to prevent rollback on slopes, and Hill Start Assist for additional torque to get you started on inclines. It also allows stationary gear shifting for a smooth and intuitive experience.

Features:

  • 105 N·m max continuous torque
  • 19.2 kg total weight
  • 2.27 kg carbon fiber frame
  • Avinox M1 Drive Unit with compound planetary gearset
  • Eco, Trail, Turbo, Auto, and Boost modes
  • Intelligent Walk Assist, Auto Hold, and Hill Start Assist
Technical Information
  • Frame
    Amflow PL Carbon Frame, Satin Silver, 150mm rear travel, Compatible with 27.5" and 29" rear wheels
  • Drive Unit
    Avinox M1 Drive Unit, 105 N·m
  • Screen
    Avinox Screen, 2-inch OLED Control Display
  • Battery
    Avinox Integrated Battery, 800Wh
  • Wireless Controllers
    Avinox Wireless Controllers, Right and left sides
  • Fast Charger
    Avinox Fast Charger, 12A/508W
  • Rear Shock
    FOX Float Performance, Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever
  • Fork
    FOX 36 Performance, 160mm travel, GRIP Damper, 15×110mm, 44mm rake
  • Rear Derailleur
    SRAM GX Eagle 12-speed
  • Chainring
    SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
  • Shift Levers
    SRAM GX Eagle Trigger Shifter, Single Click
  • Cassette
    SRAM PG-1230, 11-50T
  • Chain
    SRAM NX Eagle
  • Crankset
    DJI Avinox SL Crank, M/L: 155mm, XL/XXL: 160mm
  • Brakes
    Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)
  • Wheel Model
    Amflow HMA-30
  • Rims
    Alloy, 29", 30mm internal width, 32H, tubeless ready
  • Spokes
    SAPIM E-Light J-bend
  • Front Hub
    Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
  • Rear Hub
    Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
  • Front Tire
    Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
  • Rear Tire
    Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
  • Handlebar
    Amflow Enduro Alloy Handlebar, 35mm rise, 800mm wide, 5-degree upsweep, 9-degree backsweep
  • Grips
    Amflow Enduro Grips
  • Stem
    Amflow Enduro Stem, One-piece CNC, Length: 35mm, Clamping diameter: 35mm
  • Saddle
    Selle Royal SRX Plus
  • Seatpost
    KS Rage-i, M: 150mm, L: 170mm, XL/XXL: 190mm
  • Accessories
    Quick Start Guide, Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25), Shock Pump, Front and Rear Lights
