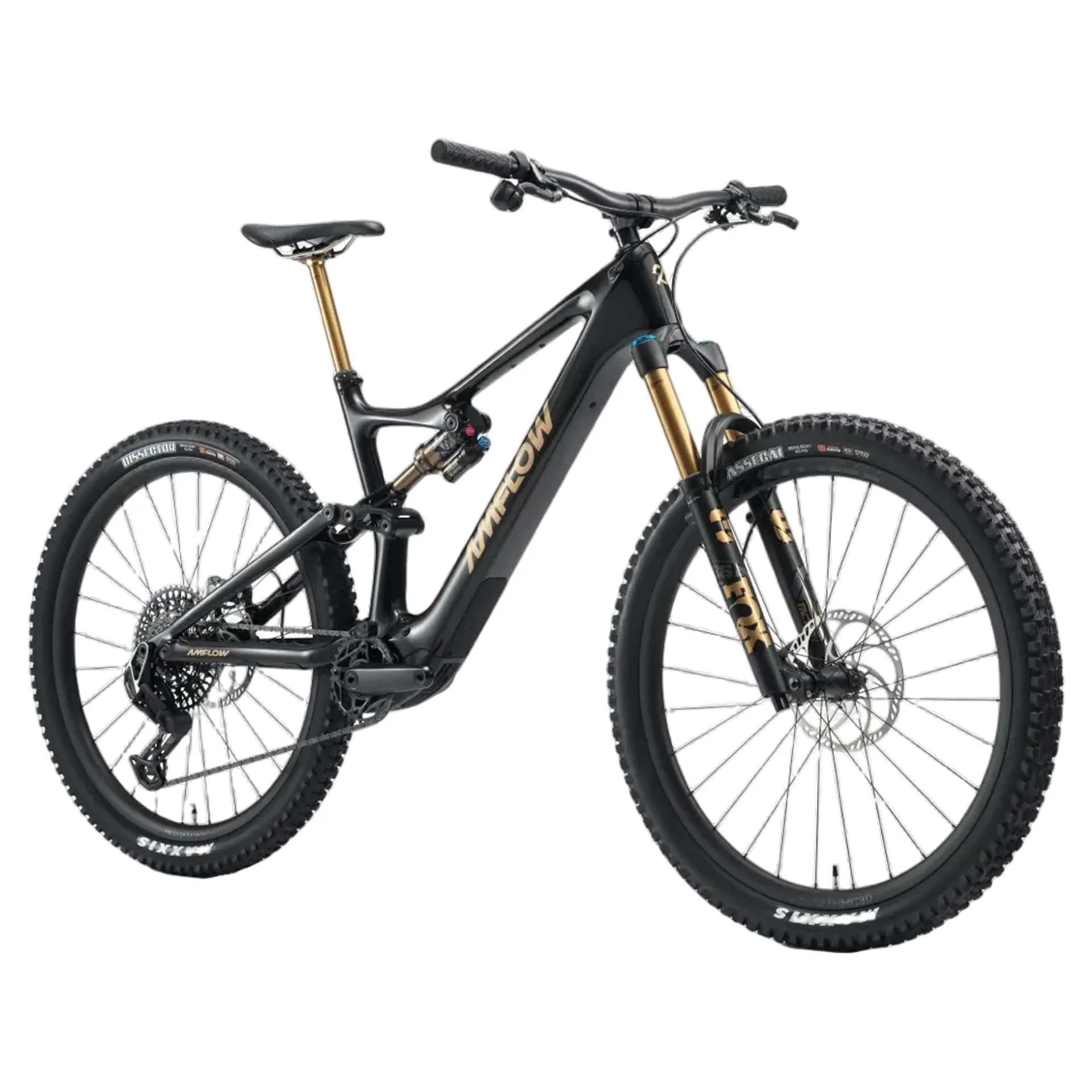

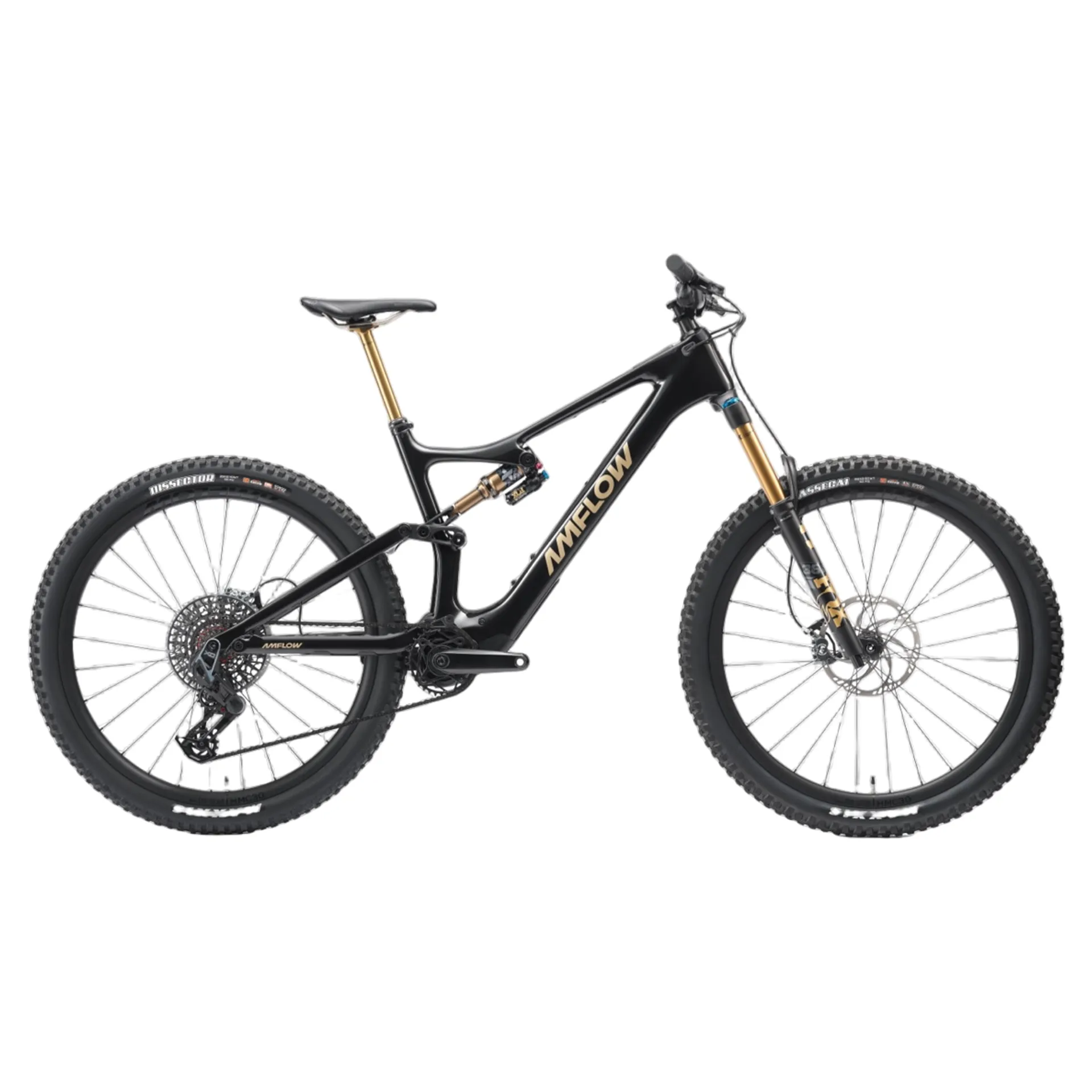

The Amflow PL Carbon Pro features an ultra-light carbon fiber frame and a powerful 1000W motor for exceptional performance.
The Amflow PL Carbon Pro features an ultra-light carbon fiber frame and a powerful 1000W motor for exceptional performance.
Amflow

Amflow PL Carbon Pro 800Wh in Natural Carbon Black

$8,599.00 $10,199.00 16% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Amflow PL Carbon Pro 800Wh in Natural Carbon Black

Season:SP26

Brand:Amflow

Code:136.01-NCB

The Amflow PL Carbon Pro features an ultra-light carbon fiber frame and a powerful 1000W motor for exceptional performance.

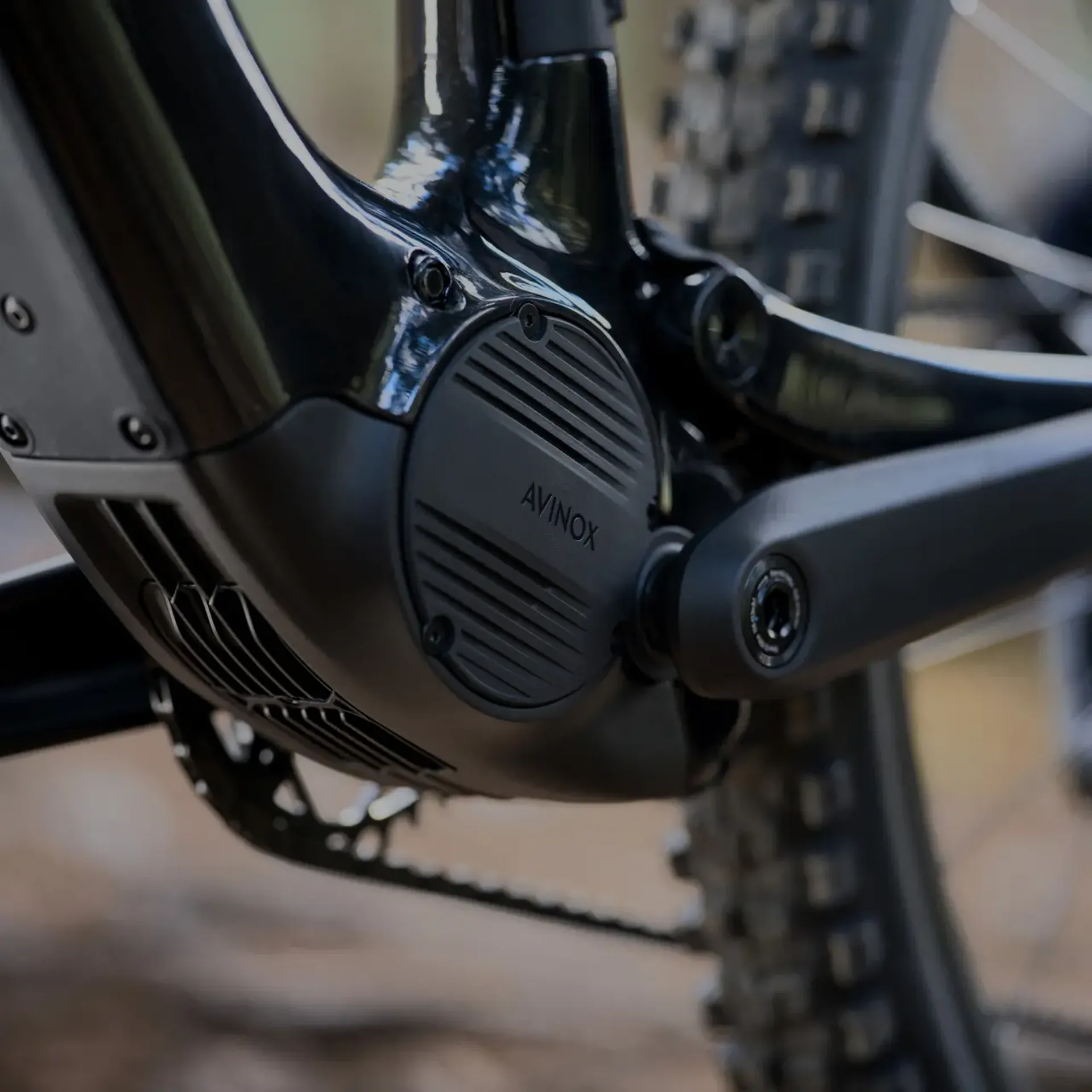

The 19.2kg build utilizes an ultra-light carbon fiber frame weighing just 2.27 kg for speed and agility. The Avinox Drive System provides an 800 Wh battery capacity, allowing for a range of up to 157 km. The 2.52kg motor delivers 105N·m of continuous torque and 1000W of peak power, with durable polymer material that effectively suppresses noise.

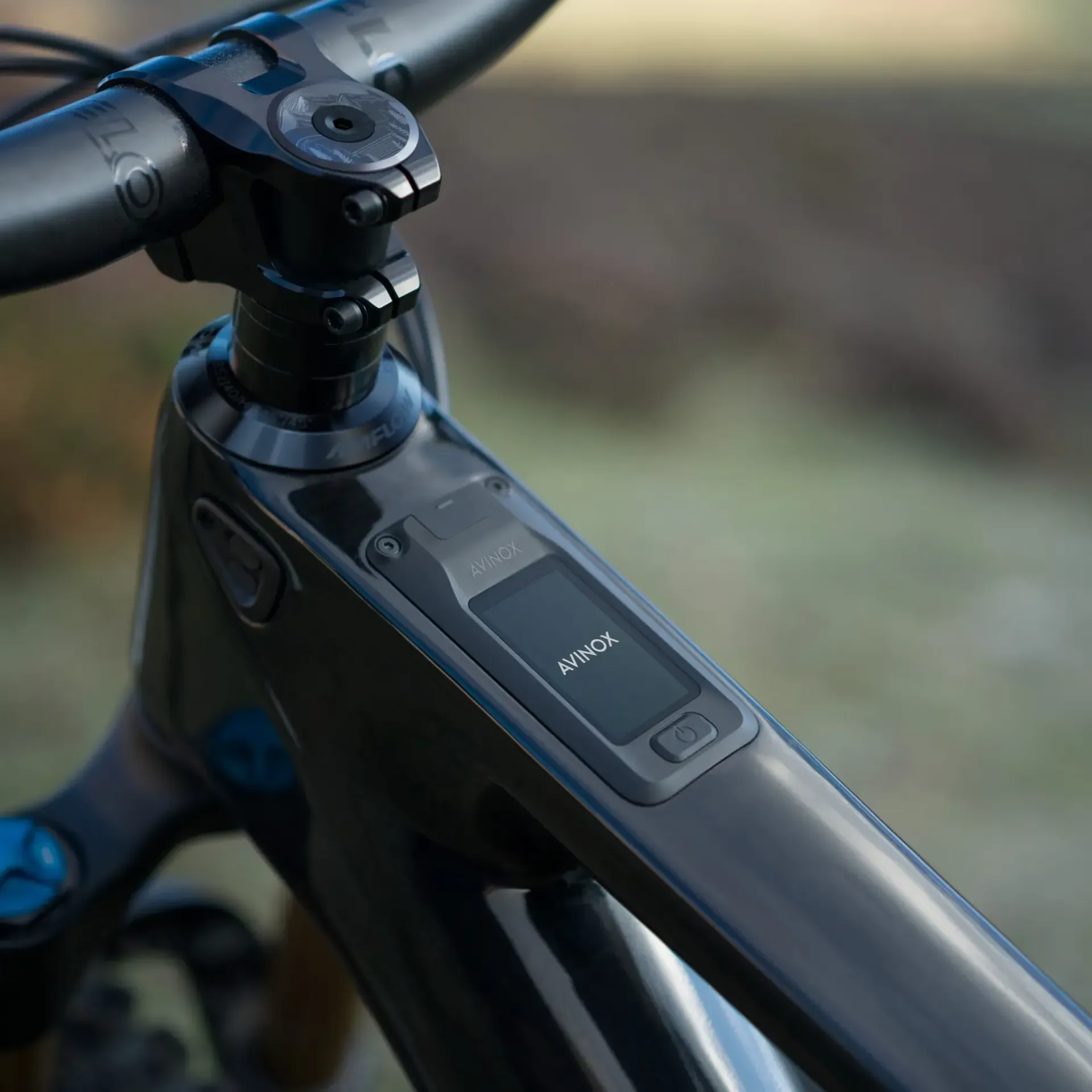

The bike includes a 2-inch (5.08 cm) full-color OLED touchscreen that displays real-time ride data and range, with remote locating features available via the Avinox app. The frame geometry features a 64.5° head tube angle, a 445mm chainstay length, and a 77° seat tube angle for balanced handling.

Features:

  • Lightweight carbon fiber frame weighing 19.2 kg total.
  • Avinox Drive System with 1000W peak power and 105 N·m max continuous torque.
  • 800Wh battery capacity with GaN 3x fast charging.
  • Five assistance modes: Eco, Trail, Turbo, Auto, and Boost.
  • 2-inch OLED touchscreen with real-time ride metrics.
  • Advanced anti-theft features including password authentication and movement alerts.
  • Walk Assist with Auto Hold and Hill Start Assist.
  • Versatile geometry compatible with 29" and 27.5" rear wheels.
Technical Information
  • Rear travel
    150mm
  • Wheel compatibility
    27.5" and 29"
  • Drive unit
    Avinox M1, 105 N·m
  • Display
    2-inch OLED
  • Battery
    800Wh
  • Charger
    12A/508W
  • Rear shock
    FOX Float Performance, Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever
  • Fork
    FOX 36 Factory, 160mm travel, GRIP Damper, 15×110mm, 44mm rake
  • Rear derailleur
    SRAM X0 Eagle Transmission
  • Chainring
    SRAM Eagle Transmission E-MTB, 104BCD, 34T
  • Shift levers
    SRAM AXS Pod Controller
  • Cassette
    SRAM XS-1295 Eagle Transmission, 10-52T
  • Chain
    SRAM X0 Eagle Transmission Flattop
  • Crankset
    DJI Avinox SL (M/L: 155mm; XL/XXL: 160mm)
  • Brakes

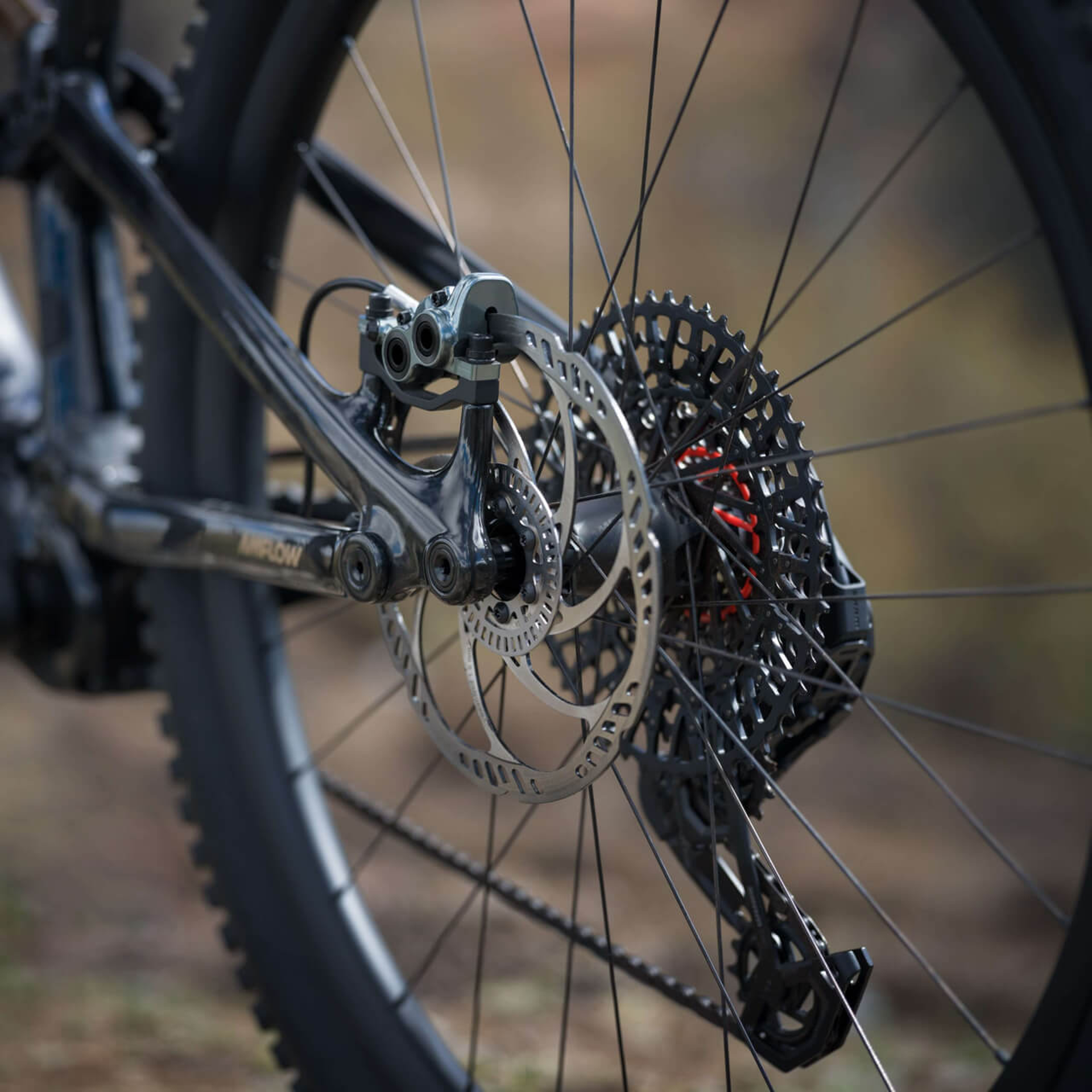

    Magura MT7 Pro hydraulic disc, HC lever, 4-piston caliper, 203mm Storm HC Rotor
  • Rims
    Carbon, 29", 30mm internal width, 28H, tubeless ready
  • Spokes
    SAPIM E-Light Straightpull
  • Front hub
    Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, 6-bolt
  • Rear hub
    Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, 6-bolt, 78T
  • Front tire
    Maxxis Assegai MaxxTerra 29×2.5"WT 3C EXO E-25 TLR
  • Rear tire
    Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
  • Handlebar
    25mm rise, 800mm wide, 5-degree upsweep, 9-degree backsweep
  • Stem
    One-piece CNC, 35mm length, 35mm clamping diameter
  • Saddle
    Ergon SM PRO M/L
  • Seatpost size
    Travel range (mm)
  • M
    125-150
  • L
    155-180
  • XL/XXL
    185-210
  • Accessories
    Quick Start Guide, Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25), Shock Pump, Front and Rear Lights
