The all-new Domane+ ALR pairs TQ’s HPR60 mid-drive motor with Domane versatility and comfort for a high-powered electric bike that makes more adventure possible.
The all-new Domane+ ALR pairs TQ’s HPR60 mid-drive motor with Domane versatility and comfort for a high-powered electric bike that makes more adventure possible.
Trek

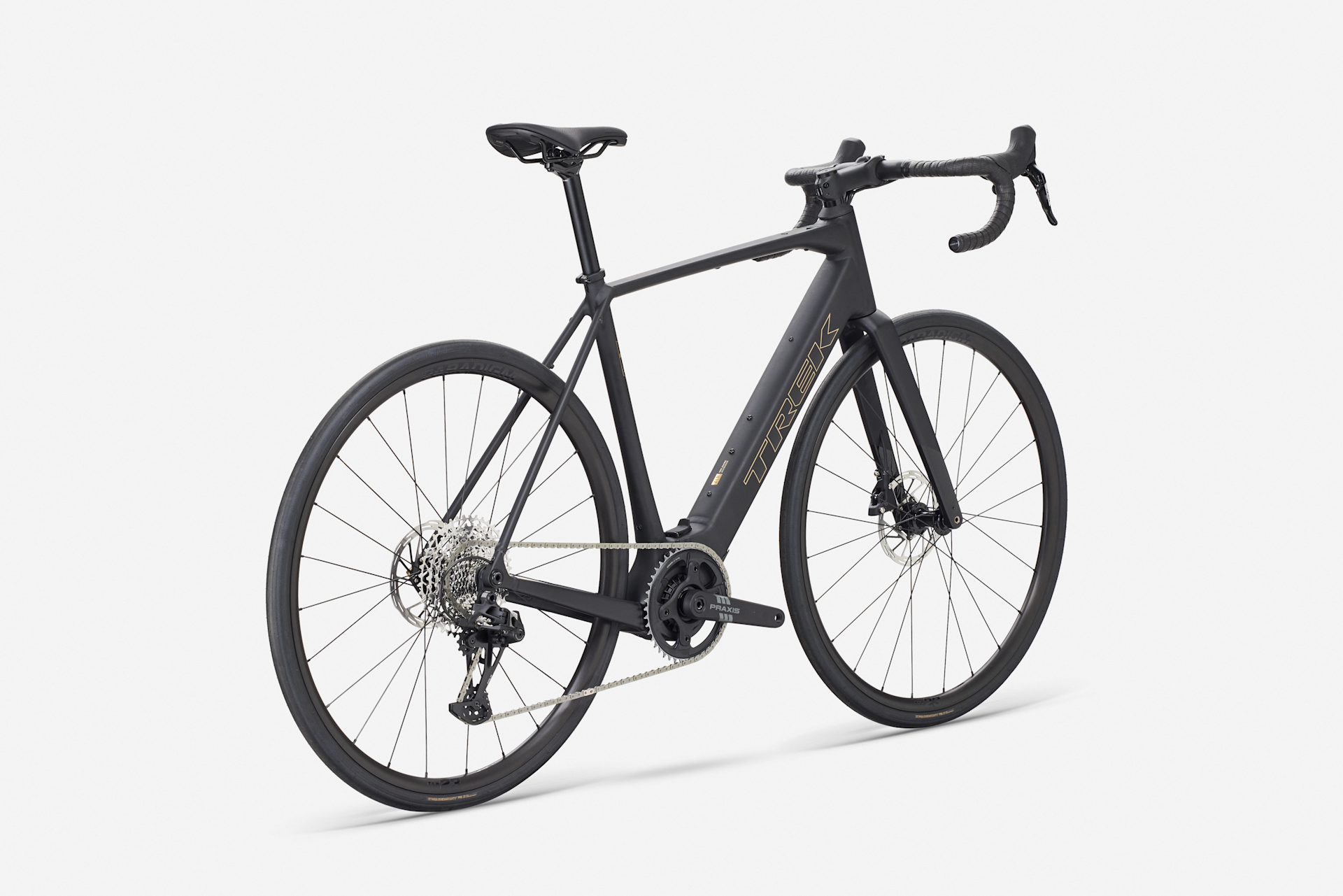

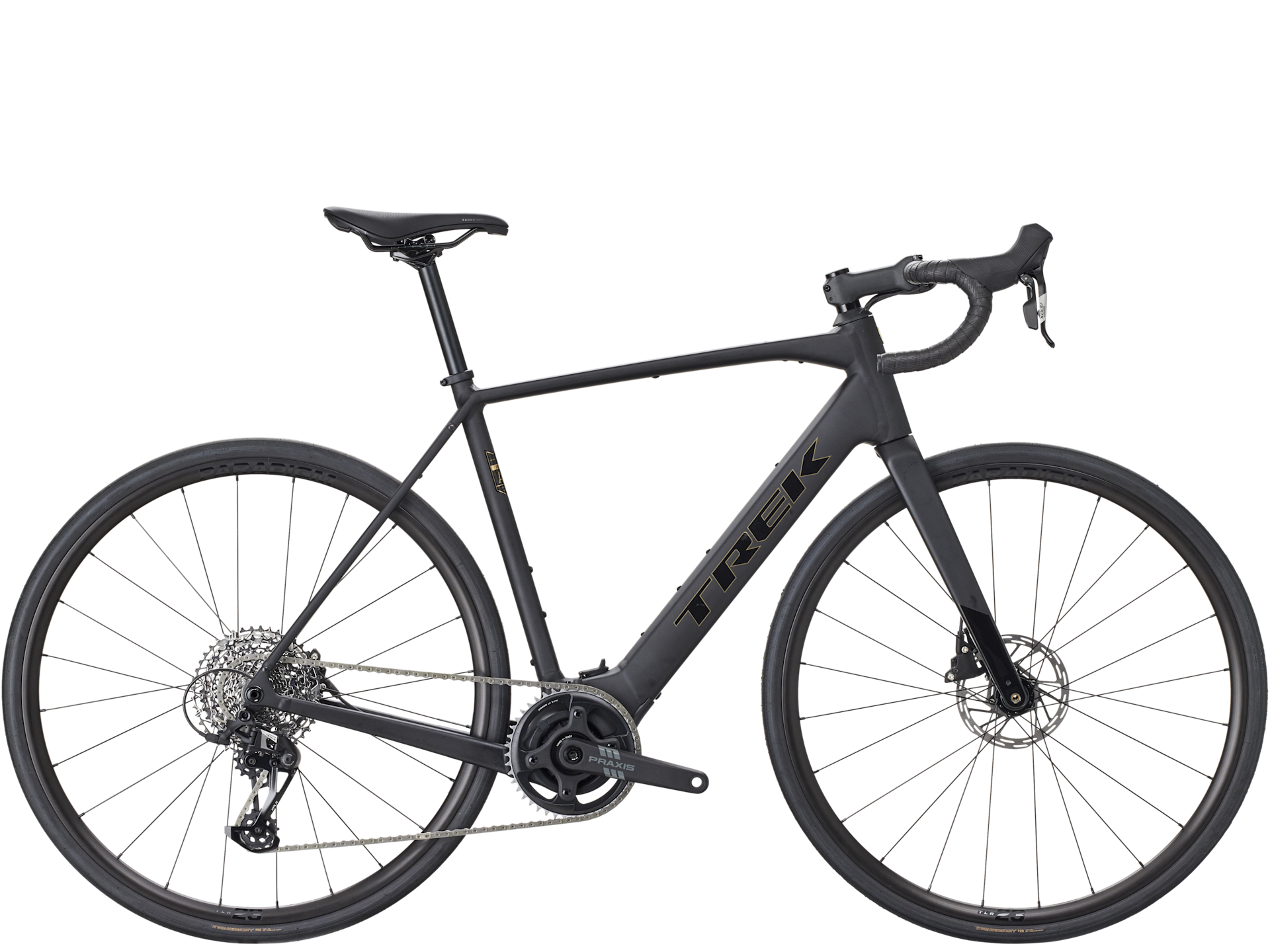

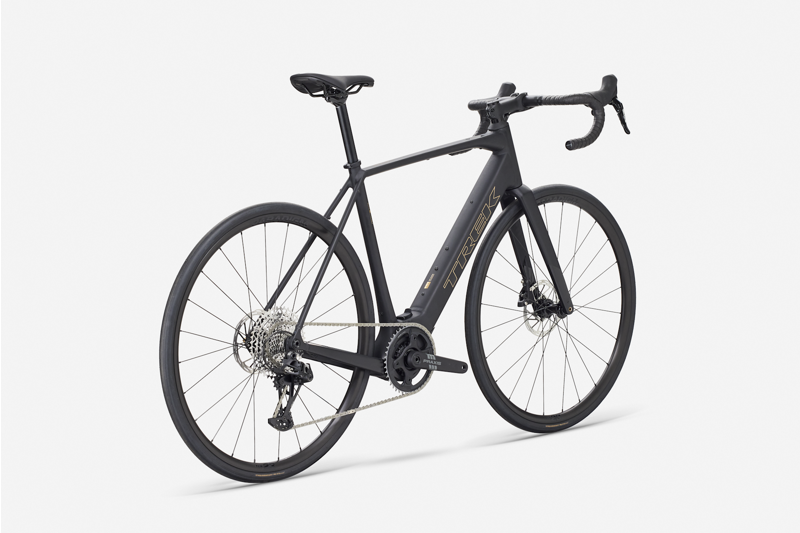

Trek Domane+ ALR 5 Electric Road Bike in Matte Dark Star

$4,999.99
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Trek Domane+ ALR 5 Electric Road Bike in Matte Dark Star

Season:FA25

Brand:Trek

Code:5335406-MDS

The all-new Domane+ ALR pairs TQ’s HPR60 mid-drive motor with Domane versatility and comfort for a high-powered electric bike.

The Domane+ ALR 5 is an aluminum electric road bike with a smooth, quiet, and natural-feeling boost. Its TQ HPR60 motor provides plenty of support for long rides and big climbs, and pairs with a SRAM Apex 12-speed drivetrain for clean, consistent shifts. This model is made with a lower-impact aluminum frame.

The industry-leading TQ HPR60 motor is ultra-compact, whisper-quiet, and offers a natural-feeling assist up to 45 km/h (28 mph) with three assist mode options. You can explore even farther with an optional 160Wh Range Extender that fits in your bottle cage and gives an extended total range of around 193 km (120 miles) in Eco mode.

The Domane+ features a stable Road Endurance geometry that is a bit more upright to keep you fast and comfortable on all-day adventures. Room for up to 40mm tires (as measured) lets you venture from pavement to light gravel in comfort and confidence. The frame features durable and economical aluminum made with lower-emission aluminum.

The Trek Central app seamlessly connects to the Domane+ for real-time range calculations, activity tracking, and custom motor tuning. Plus, navigation and mapping features help you stay on course wherever you ride. The e-systems on these e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification.

Features:

  • Comfortable Road Endurance geometry.
  • All-road tire clearance for up to 40mm tires.
  • Mounts for a triangle bag, rack, fenders, and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.
Technical Information
  • Frame
    300 Series Alpha Aluminum, TQ drive system, hidden fender mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat mount disc, integrated chainkeeper, UDH, 142x12mm chamfered thru axle
  • Fork
    Domane+ carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle
  • Weight
    ML - 14.39 kg / 31.73 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
  • Battery
    TQ 360Wh
  • Charger
    TQ 4A charger
  • Computer
    TQ LED display with Bluetooth & ANT+ connectivity

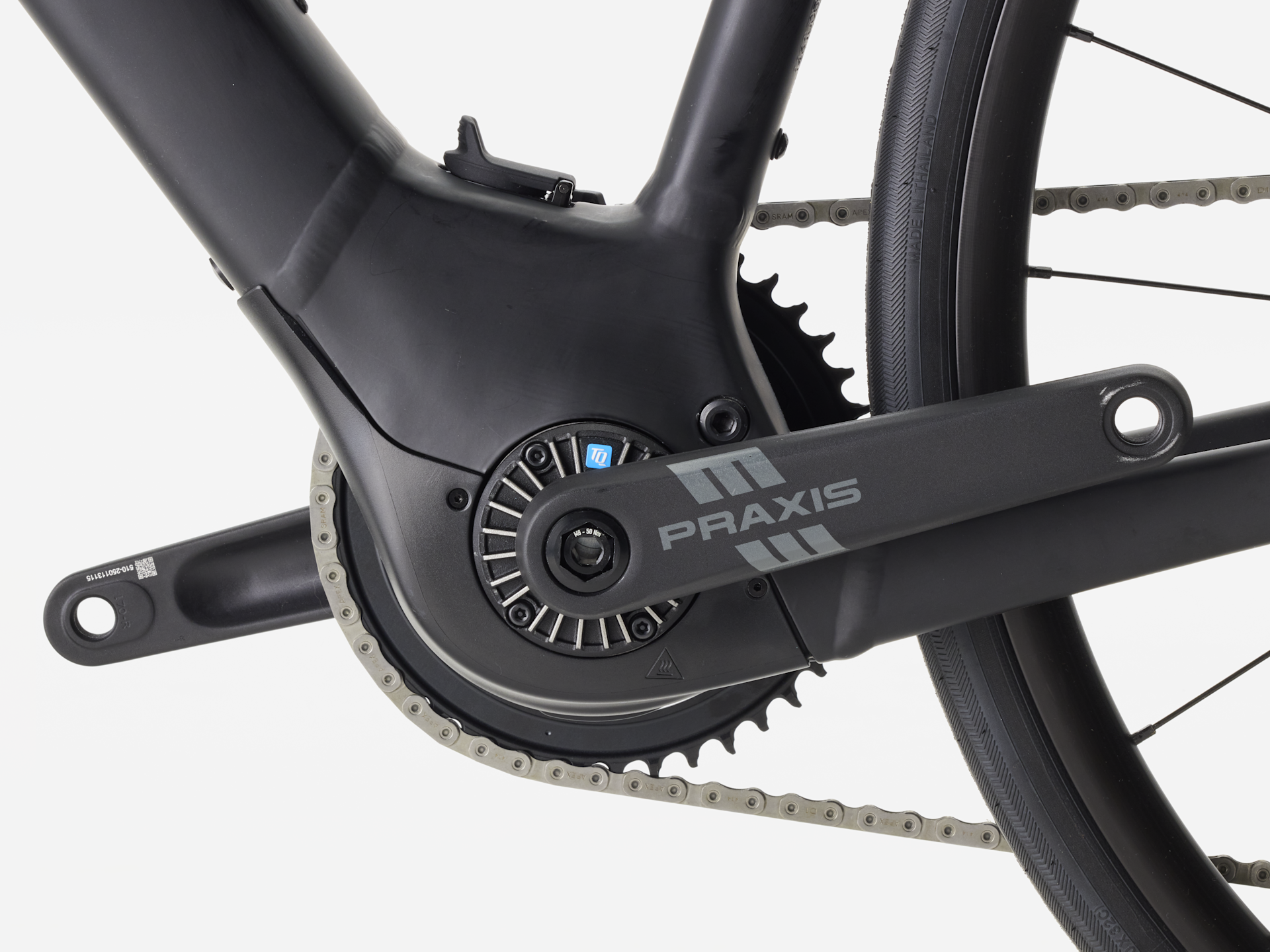

  • Motor
    TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
  • Shifter
    SRAM Apex, 12 speed

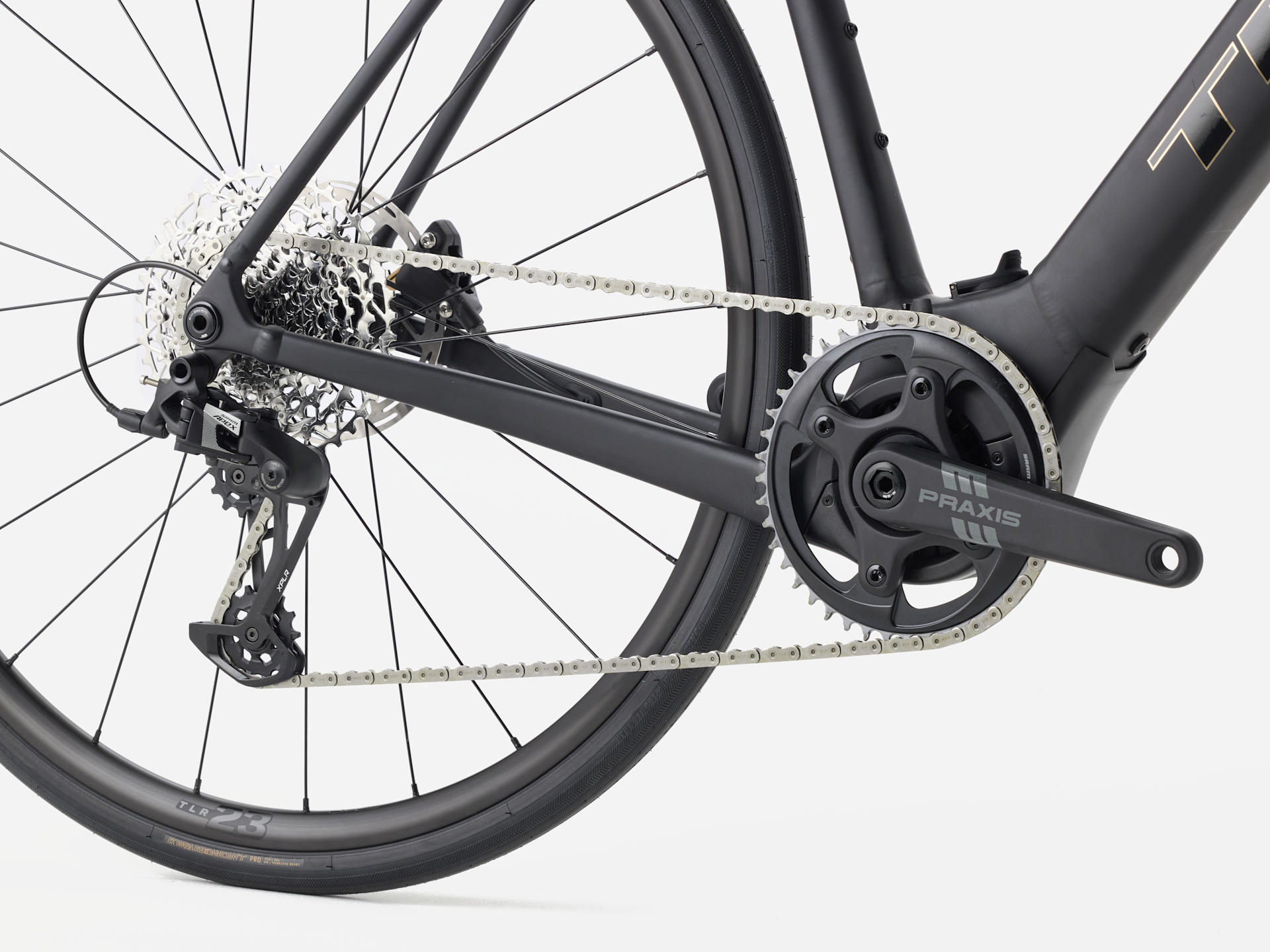

  • Rear derailleur
    SRAM Apex XPLR, 44T max cog
  • Crank
    Size: XS, S: Praxis Alloy, 165mm length; Size: M, ML: Praxis Alloy, 170mm length; Size: L, XL: Praxis Alloy, 172.5mm length
  • Cassette
    SRAM XPLR PG-1231, 11-44, 12 speed
  • Chain
    SRAM Apex, 12 speed
  • Max chainring size
    1x: 46T
  • Hub front
    Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
  • Skewer front
    Bontrager Switch chamfered thru axle
  • Hub rear
    Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
  • Skewer rear
    Bontrager Switch chamfered thru axle, removable lever
  • Rim
    Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
  • Spokes
    14g stainless steel, black
  • Tire
    Bontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32mm
  • Max tire size
    40mm without fenders, 35mm with fenders
  • Saddle
    Verse Short Comp, steel rails, 145mm width
  • Seatpost
    Bontrager alloy, 27.2mm, 12mm offset, 330mm length

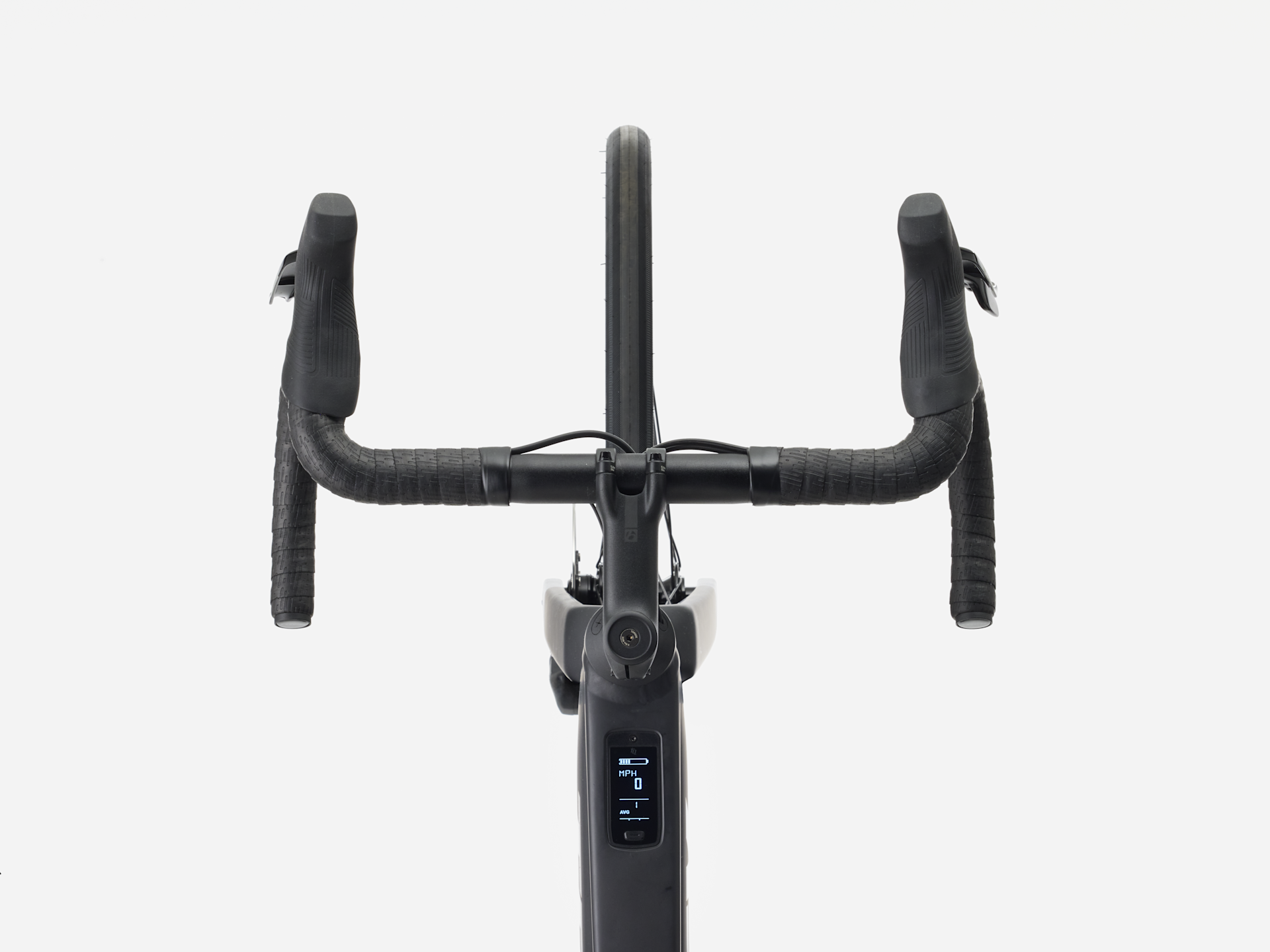

  • Handlebar
    Size: XS: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width; Size: S: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width; Size: M, ML: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width; Size: L, XL: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
  • Handlebar tape
    Trek EcoTack
  • Stem
    Size: XS: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: S: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: M: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: ML, L: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: XL: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
  • Brake
    SRAM Apex D1 hydraulic disc, flat mount
  • Brake rotor
    SRAM Paceline, rounded, centerlock, 160mm
  • Brake lever
    SRAM Apex, 12 speed
  • Rotor size
    Max brake rotor sizes: 160mm front & rear
