Fuel EX 5 is an aluminum trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock.
Fuel EX 5 is an aluminum trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock.
Trek

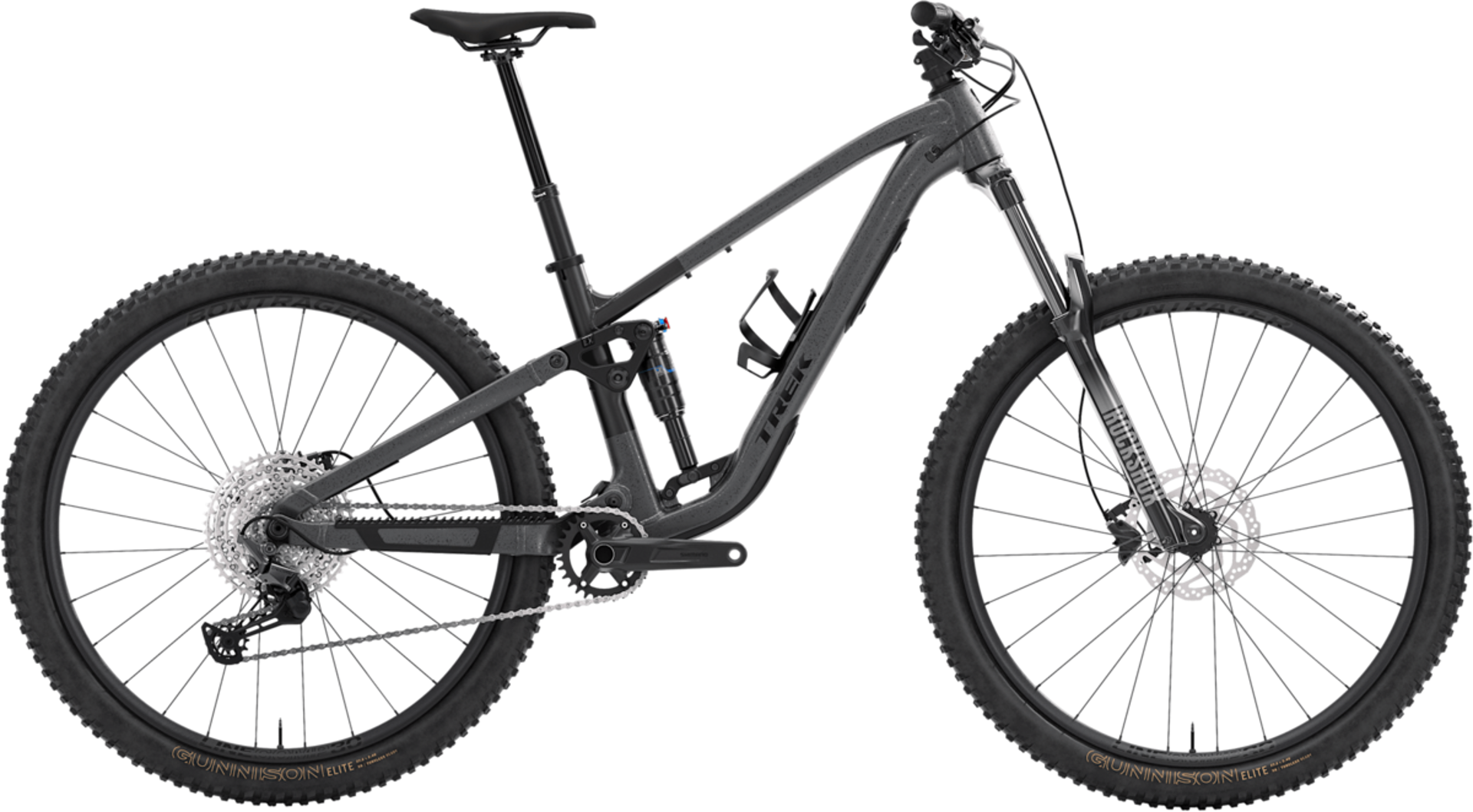

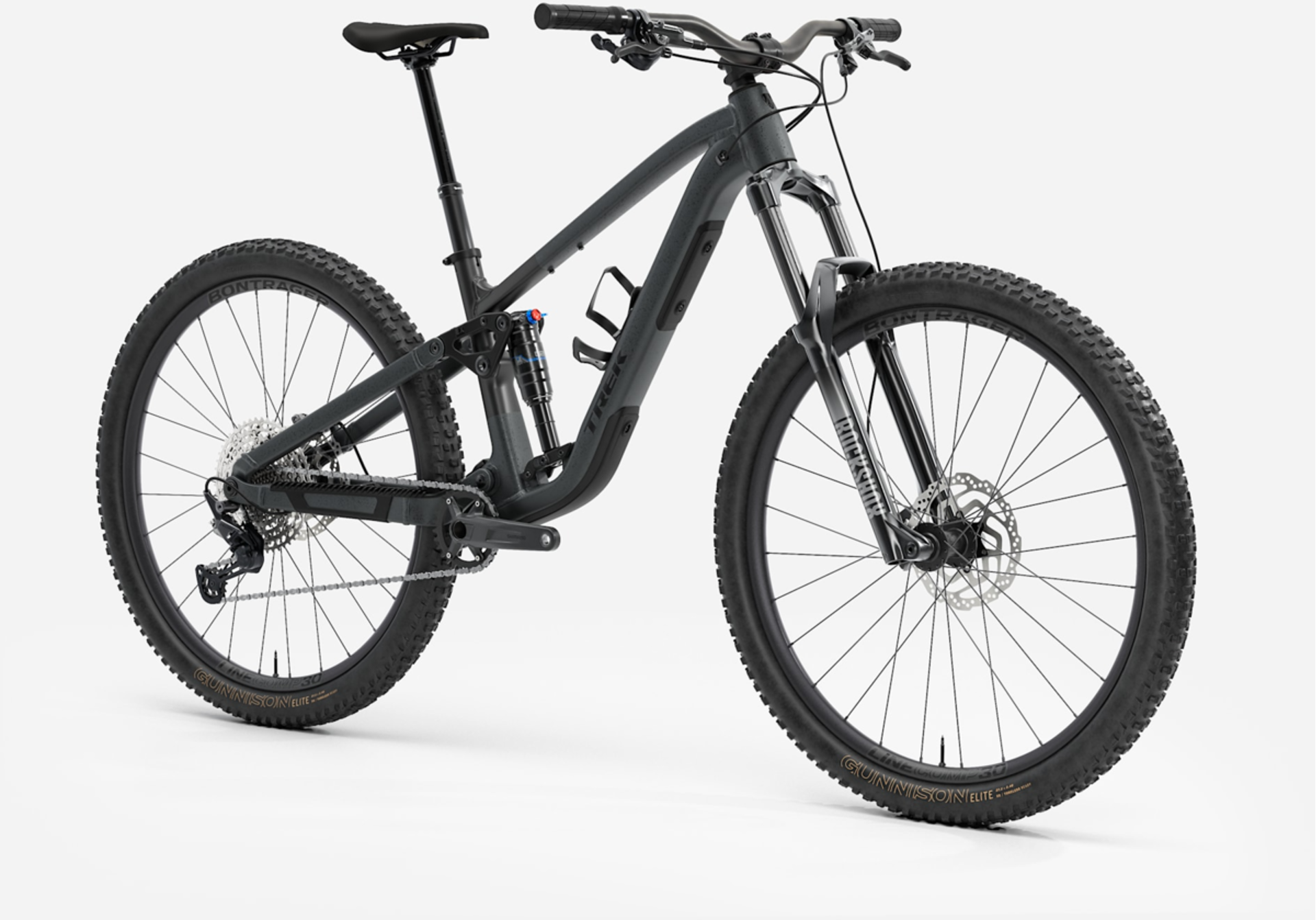

Trek Fuel EX 5 Gen 7 in Lithium Grey and Trek Black Splatter

$2,899.99
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Trek Fuel EX 5 Gen 7 in Gloss Fury Red and Matte Dark Carmine
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Trek Fuel EX 5 Gen 7 in Lithium Grey and Trek Black Splatter

Season:FA25

Brand:Trek

Code:5335770-LGBS

Fuel EX 5 is an aluminum trail bike built for total versatility wherever you ride.

The EX 5 comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, tubeless-ready wheels, a 12-speed Shimano Deore drivetrain, and a TranzX dropper post, so you're ready for anything.

Flow, tech, or steeps — this Fuel bike is up to get down. This trail ripper features ultra-adjustable geometry that lets you choose your own adventure, whether you’re after a stoic trail tamer, rowdy MX ride, or enduro-ready beast. Three build options and endless tweaks mean you can get a ride that’s fine-tuned for your style and stomping grounds. Wherever the trail leads you, Fuel is ready to send.

Technical Information
  • Frame
    Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
  • Fork
    Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15mm Maxle Stealth, 150mm travel

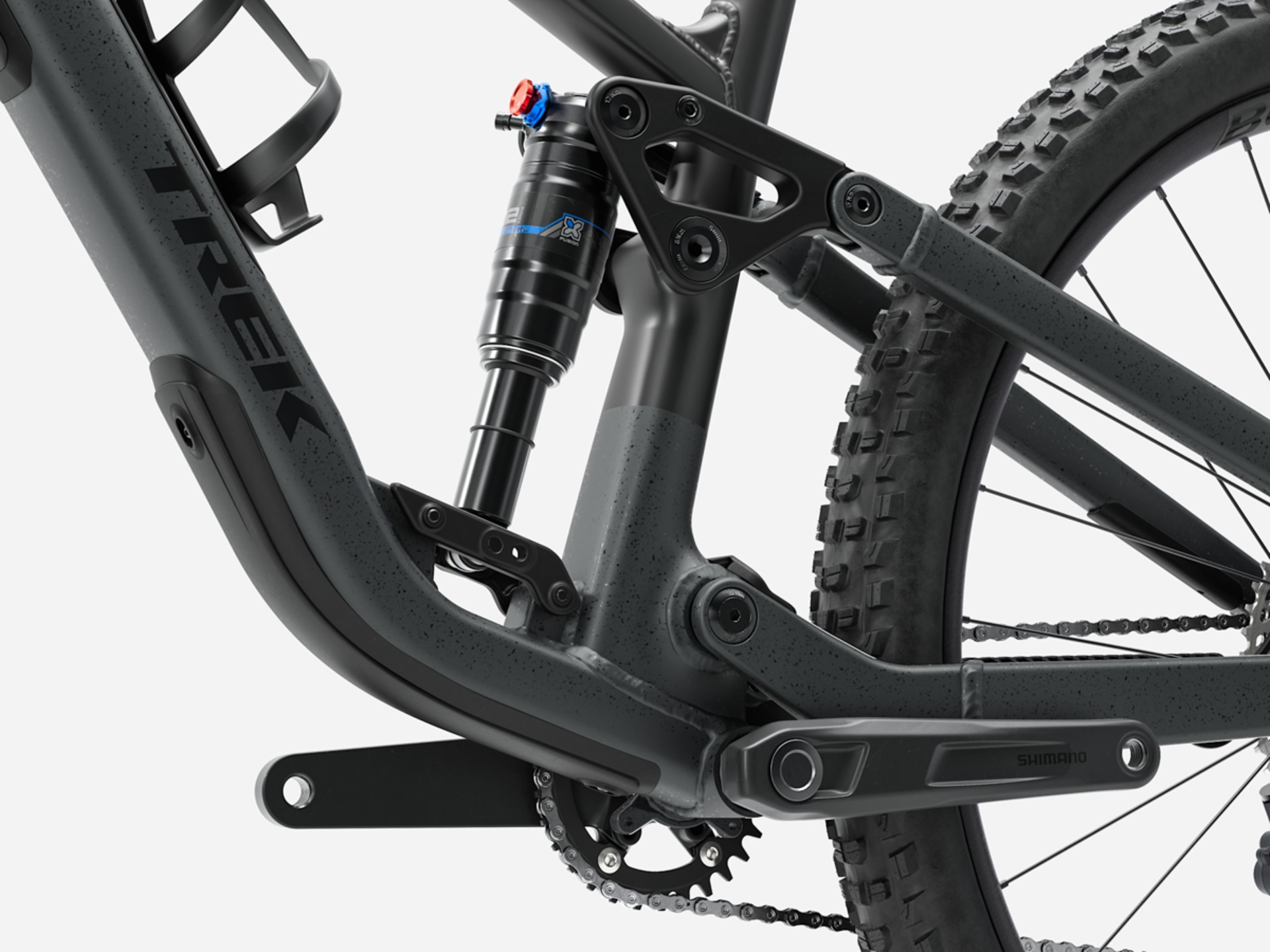

  • Rear Shock
    X-Fusion Pro 2, 2-position damper, 205mm x 60mm
  • Front Rims
    Bontrager Line TLR 30, Tubeless Ready, 32-Hole, Presta valve
  • Rear Rims
    Bontrager Line TLR 30, Tubeless Ready, 28-Hole, Presta valve
  • Front Hubs
    Shimano TC500 alloy, centerlock, 110x15mm thru axle
  • Rear Hubs
    Shimano TC500 alloy, centerlock, 148x12mm thru axle
  • Front Tires
    Small - X-Large Bontrager Gunnison Elite XR, Tubeless Ready, wire bead 60 tpi, 29x2.40
  • Rear Tires (Small)
    Small Bontrager Gunnison Elite XR, Tubeless Ready, wire bead 60 tpi, 27x2.40
  • Rear Tires (Small/X-Large)
    Bontrager Gunnison Elite XR, Tubeless Ready, wire bead 60 tpi, 29x2.40
  • Rear Tires (Medium-Large)
    Medium - Large Bontrager Gunnison Elite XR, Tubeless Ready, wire bead 60 tpi, 27x2.40
  • Bottom Bracket
    Shimano BB-MT501 BSA
  • Crankset
    Shimano MT512, 30T ring, 55mm chainline, 170mm length
  • Shifters
    Shimano Deore M6100, 12 speed

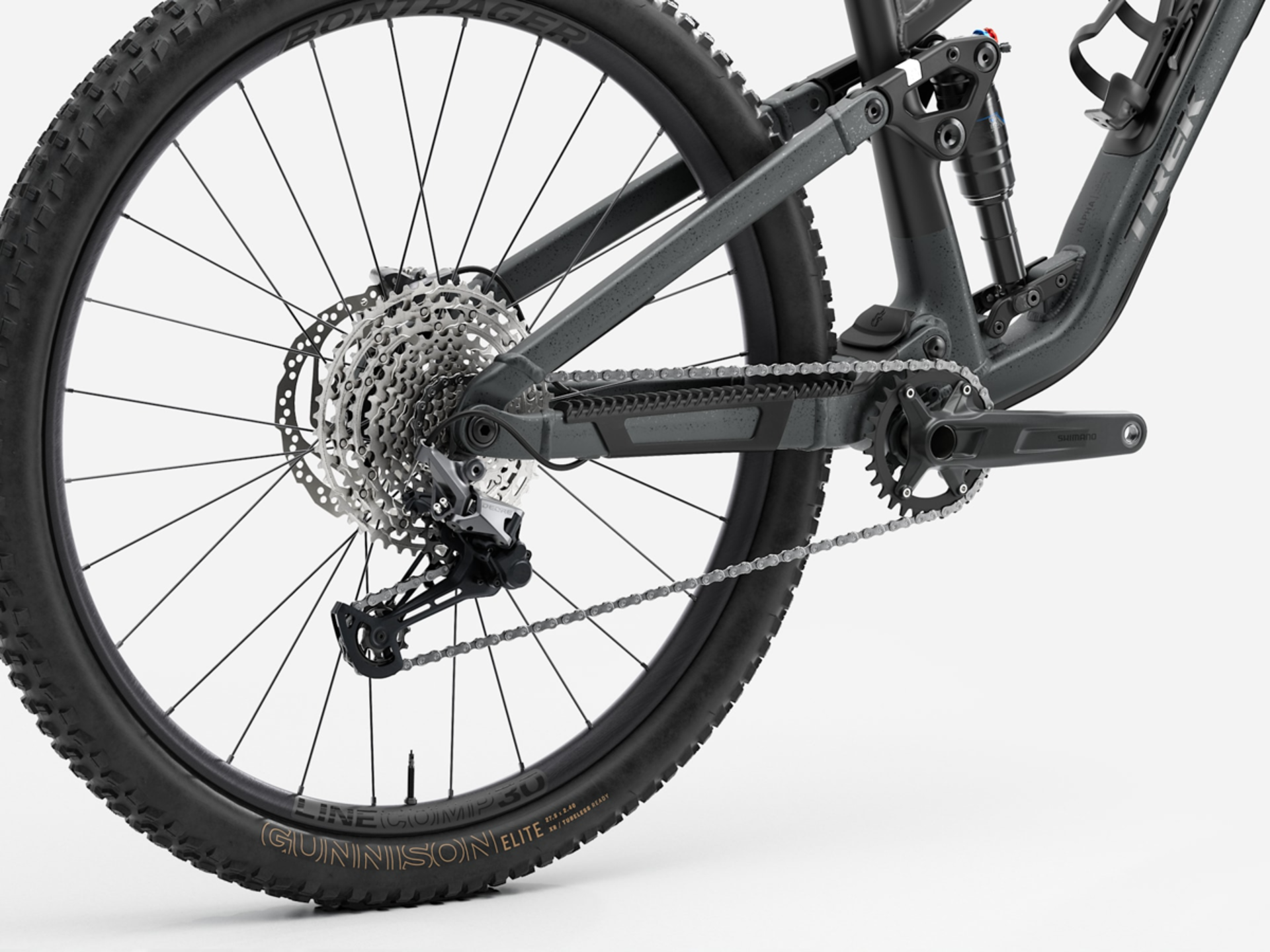

  • Rear Derailleur
    Shimano Deore M6100, long cage
  • Cassette/Freewheel
    Shimano Deore M6100, 10-51, 12 speed
  • Chain
    Shimano Deore M6100, 12 speed
  • Brakes
    Shimano hydraulic disc, MT201 lever, MT200 caliper
  • Rotors
    Shimano RT10, centerlock, 180mm
  • Handlebars
    Bontrager Comp, alloy 31.8mm, 40mm rise, 780mm width
  • Tape/Grips
    Bontrager Comp, nylon lock-on
  • Headset
    FSA Orbit, Sealed cartridge bearing, 1-1/8" top, 1.5" bottom, 1.5 crown
  • Seatpost (Small)
    Small: TranzX JD-YSI34, 150mm travel, internal routing, 34.9mm
  • Seatpost (Medium-X-Large)
    Medium - X-Large: TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm
  • Saddle
    Bontrager Verse Short, stainless steel rails
