Specifications
*Frame Size: XXS , XS

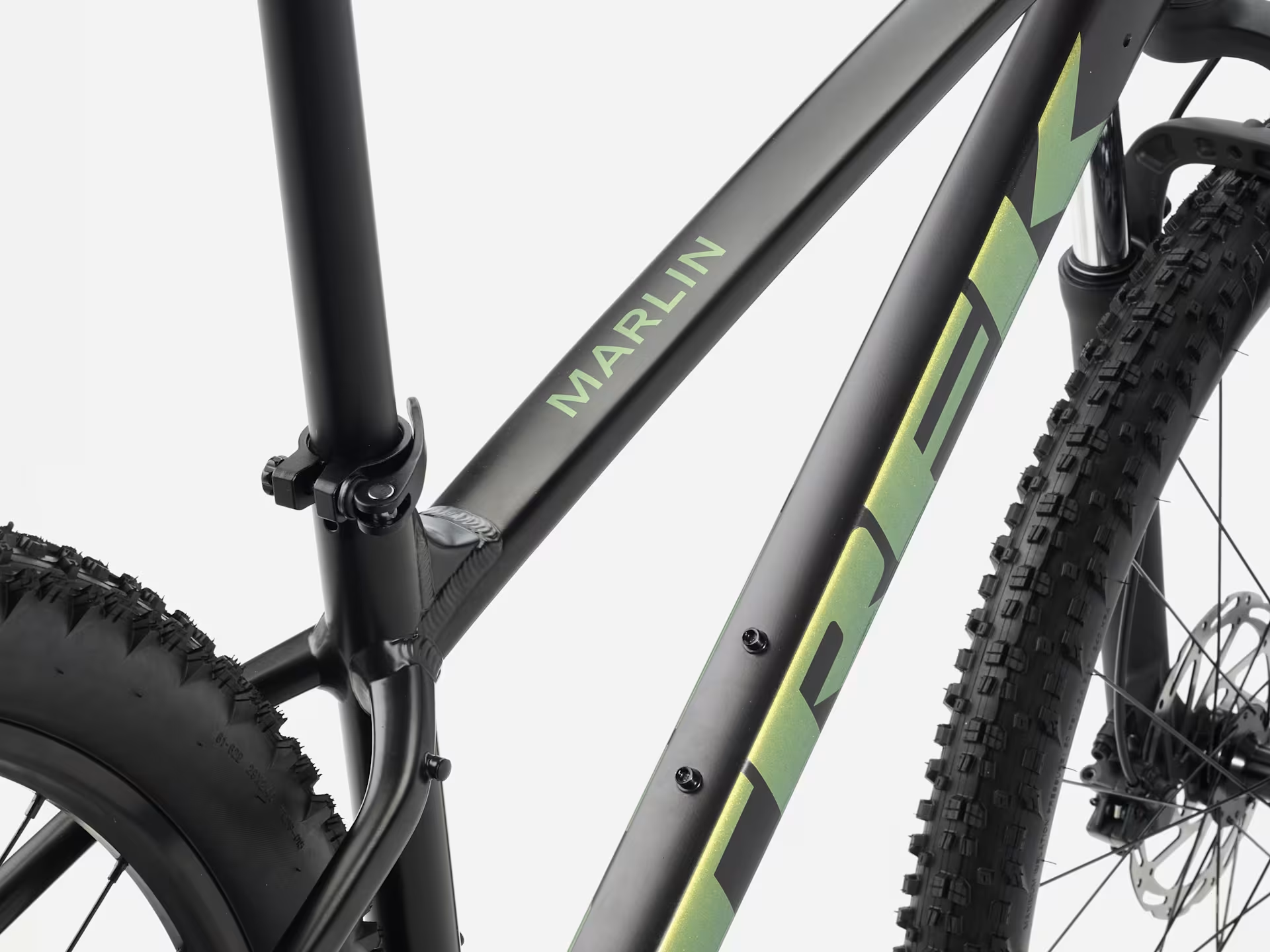

Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Size: ML , M , L , S , XL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
*Fork Size: XXS
SR Suntour XCM 30, coil spring, preload, hydraulic lockout, 42mm offset for 26'' wheel, 100mm QR, 100mm travel
Size: XS
SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
Size: S
SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: ML , M , L , XL
SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Wheels
Specifications
*Hub front Size: ML , M , XXS , XS , L , S , XL
Formula DC-20, alloy, 6-bolt, 5x100mm QR
*Hub rear Size: ML , M , XXS , XS , L , S , XL
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
*Skewer rear Size: ML , M , XXS , XS , L , S , XL
173x5mm QR
*Rim Size: ML , M , XXS , XS , L , S , XL
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
*Tire Size: XXS
Bontrager Montrose Comp, wire bead, 30 tpi, 26x2.35''
Size: XS , S
Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40''
Size: ML , M , L , XL
Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40''

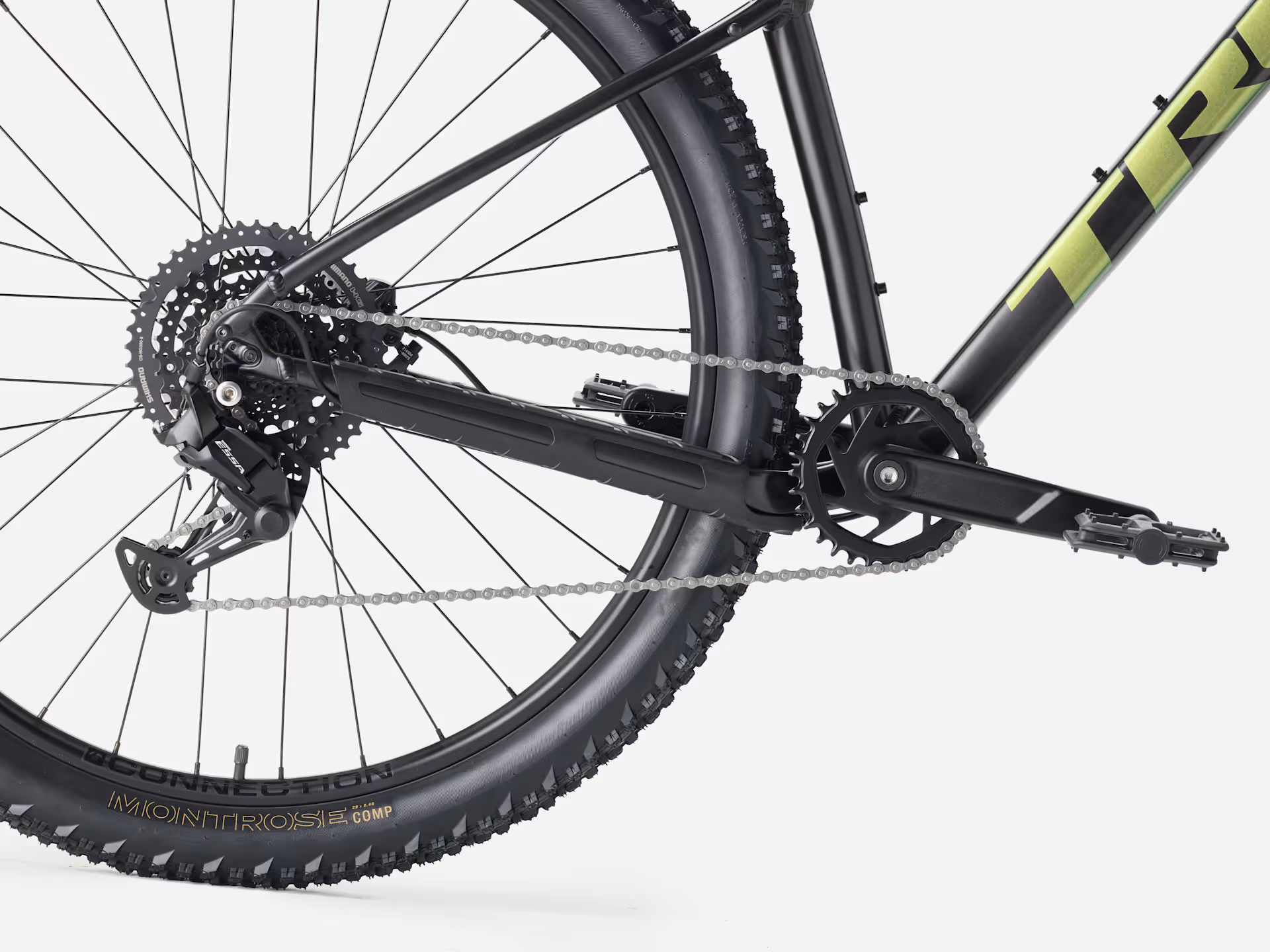

Drivetrain
Specifications
*Shifter Size: ML , M , XXS , XS , L , S , XL
Shimano M315, 8 speed
*Rear derailleur Size: ML , M , XXS , XS , L , S , XL
Shimano ESSA U2000
*Crank Size: XXS , XS
ProWheel alloy, 32T narrow-wide steel ring, 160mm length
Size: ML , M , S
ProWheel alloy, 32T narrow-wide steel ring, 170mm length
Size: L , XL
ProWheel alloy, 32T narrow-wide steel ring, 175mm length
*Cassette Size: ML , M , XXS , XS , L , S , XL
Shimano HG300, 11-45, 8 speed
*Chain Size: ML , M , XXS , XS , L , S , XL
KMC Z8.3, 8 speed
*Pedal Size: ML , M , XXS , XS , L , S , XL
nylon platform
Components
Specifications
*Saddle Size: ML , M , XXS , XS , L , S , XL
Bontrager Verse Short, stainless steel rails
*Seatpost Size: XXS
Bontrager alloy, 31.6mm, 12mm offset, 300mm length
Size: M , XS , S
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: ML , L , XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length

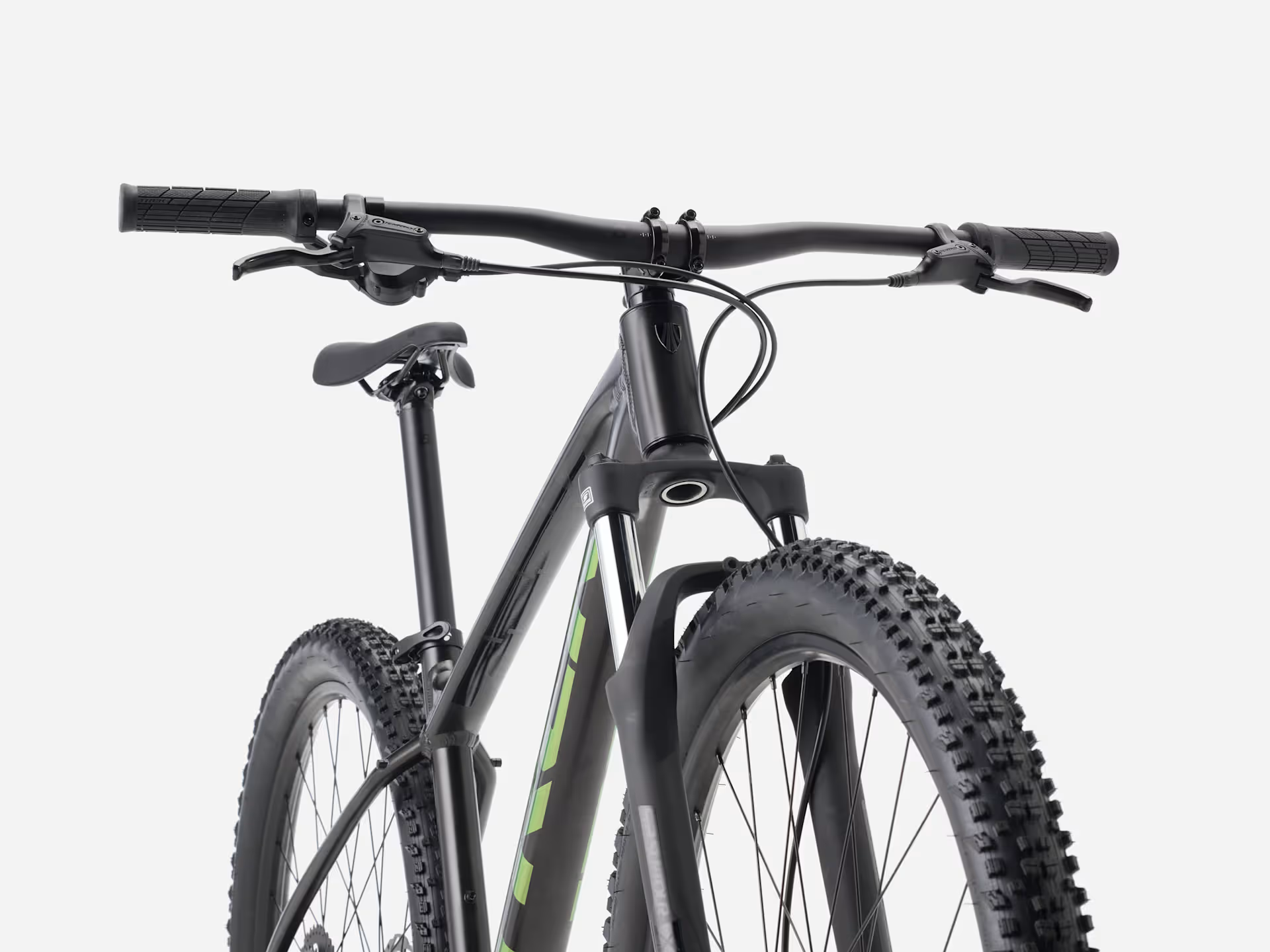

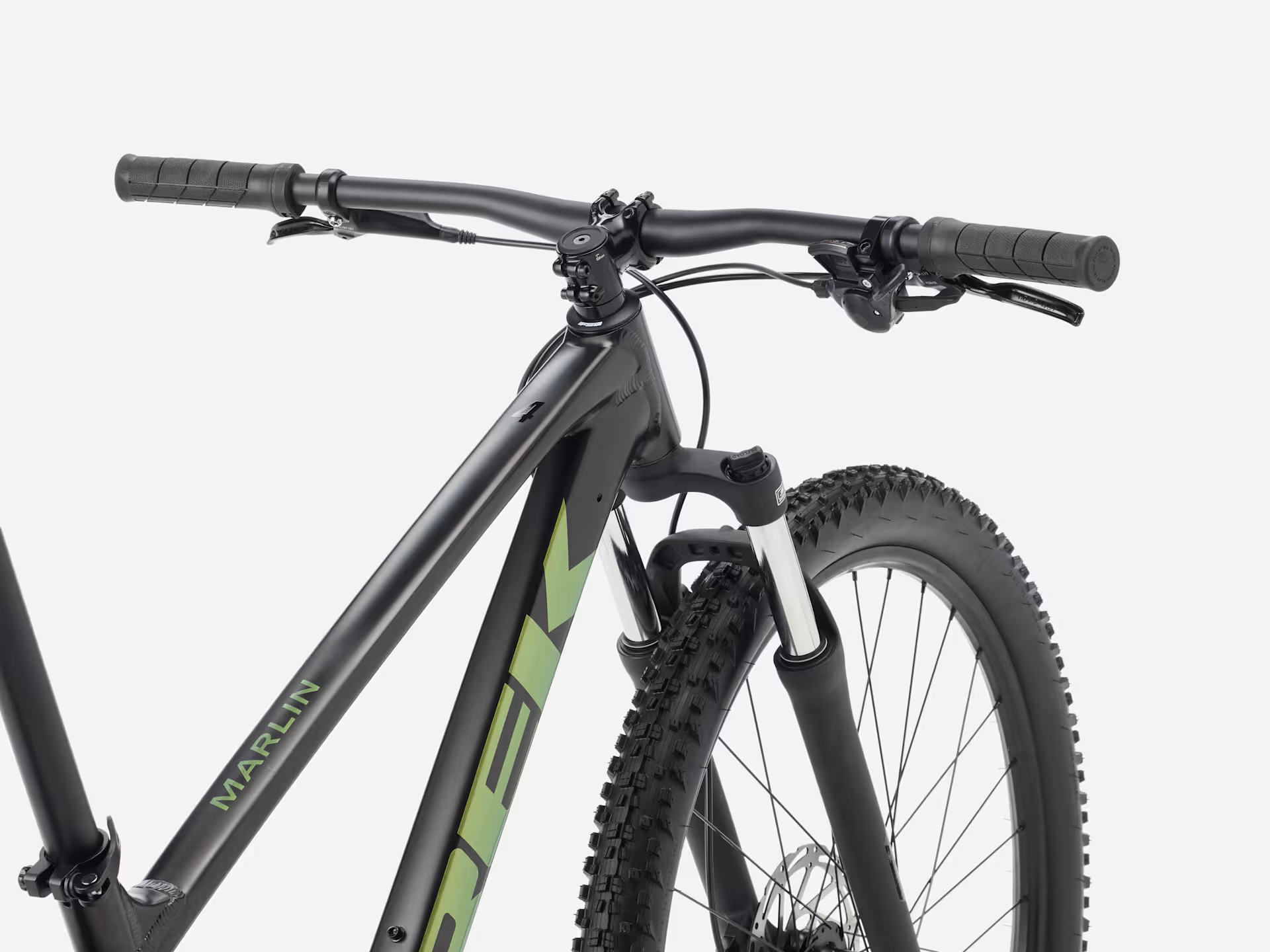

*Handlebar Size: XXS , XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: ML , M , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
*Grips Size: ML , M , XXS , XS , L , S , XL
Trek Line Comp, nylon lock-on
*Stem Size: XXS , XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: ML , M , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
*Headset Size: ML , M , XXS , XS , L , S , XL
Semi-integrated, 1-1/8''
*Brake Size: XXS , XS , S
Tektro HD-M276 hydraulic disc
Size: ML , M , XXS , XS , L , S , XL
Power BH-M286TF hydraulic disc, 160mm rotor
Size: ML , M , L , XL
Tektro HD-M275 hydraulic disc
Size: ML , M , L , XL
Power BH-M286TF hydraulic disc, 180mm rotor
*Brake rotor Size: ML , M , XXS , XS , L , S , XL
Tektro, 6-bolt, 160mm
Size: ML , M , L , XL
Tektro, 6-bolt, 180mm
