Marlin 5 is a trail-worthy daily rider perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork.
Marlin 5 is a trail-worthy daily rider perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork.
Trek

Trek Marlin 5 Gen 3 in Purple Flip to Trek Black Fade

$799.99
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Trek Marlin 5 Gen 3 in Purple Flip to Trek Black Fade

Season:FA25

Brand:Trek

Code:5292531-PFBF

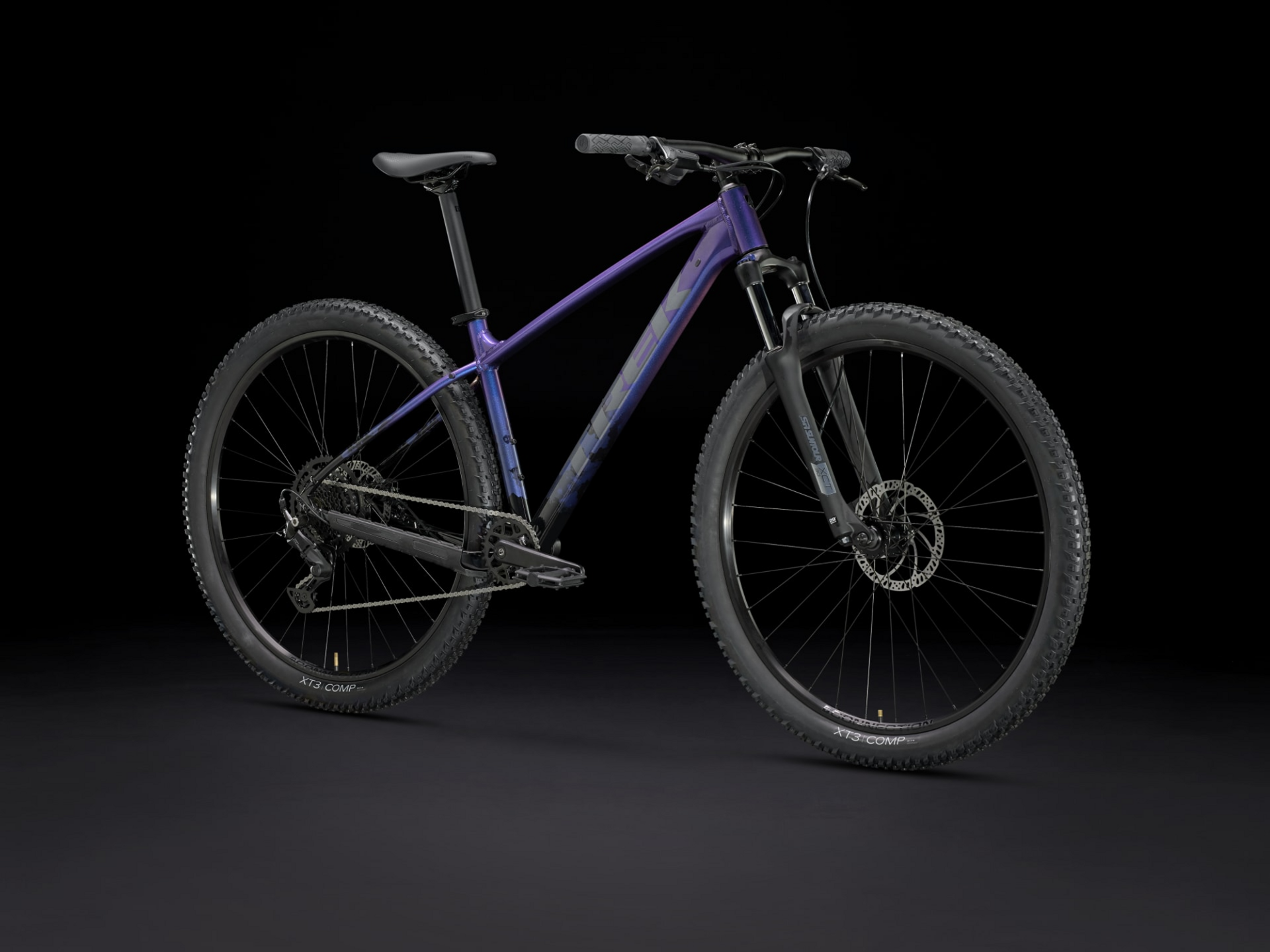

Marlin 5 is a trail-worthy daily rider that is perfectly suited for everyday adventures, on and off the trail.

This bike features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand. It is an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike. It is right for you if you are new to the trail and looking for a real mountain bike that doubles as a commuter, all at an exceptional value.

The bike includes a lightweight aluminum frame with internal routing to protect cables and add to its sleek look. It has an upgraded 9-speed Shimano CUES drivetrain with a wide range of gearing, powerful hydraulic disc brakes, and a terrain-smoothing suspension fork with a lockout. Marlin 5 is a great ride for all your adventures. It is also versatile and a popular ride on college campuses because the rack and kickstand mounts make it easy to accessorize and haul a load.

Features:

  • Marlin Gen 3 gives serious trail capability, with big tire clearance and slack, confidence-boosting geometry that keeps you stable from singletrack to city.
  • Rack and fender mounts make it easy to accessorize, so this mountain bike can double as a rugged commuter.
  • Its ThruSkew system is safer, simpler, and stronger, plus it makes removing the rear wheel easy for flat fixes in a pinch.
  • Internal routing makes it easy to add a dropper post that lets you lower your saddle on the fly for more confident descending.
  • Marlin models in sizes XXS and XS have a curved top tube and lower standover height that makes it easier for smaller riders to mount and dismount.
Technical Information
  • Pedals
    VP-536 nylon platform
  • Fork Size
    XS

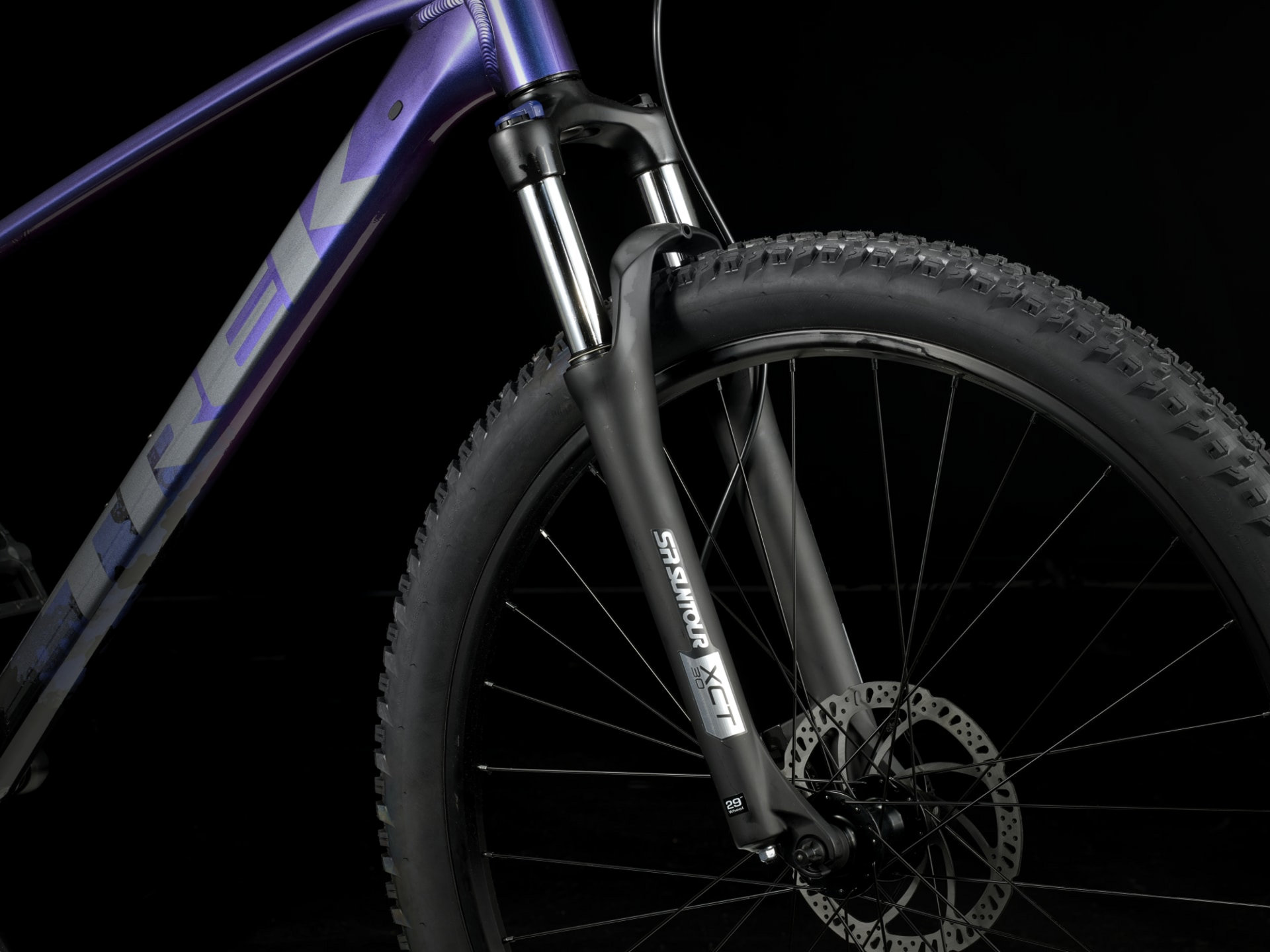

  • Fork Size S
    SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
  • Fork Size M, ML, L, XL
    SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
  • Fork Size M, ML, L, XL
    SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
  • Hubs Front
    Formula DC-20, alloy, 6-bolt, 5x100mm QR
  • Hubs Rear
    Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
  • Rims Size XS, S
    Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black
  • Rims Size M, ML, L, XL
    Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
  • Stem Size XS, S
    Bontrager Comp, 31.8mm, 7 degree, 35mm length
  • Stem Size M, ML, L
    Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
  • Stem Size XL
    Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
  • Chain
    Shimano LG500, 9/10/11 speed

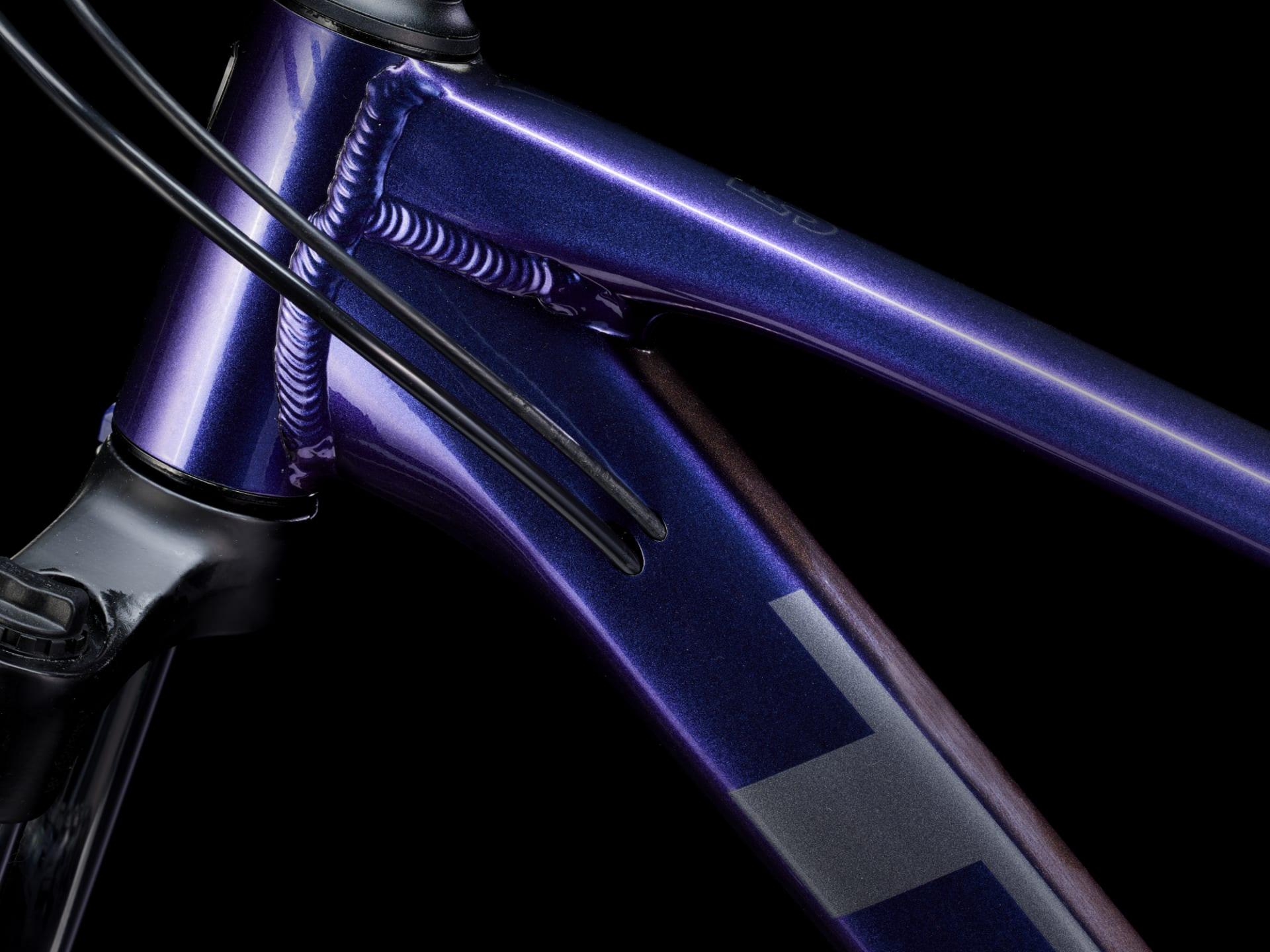

  • Frame Size XS
    Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
  • Frame Size S, M, ML, L, XL
    Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
  • Tires Size XS, S

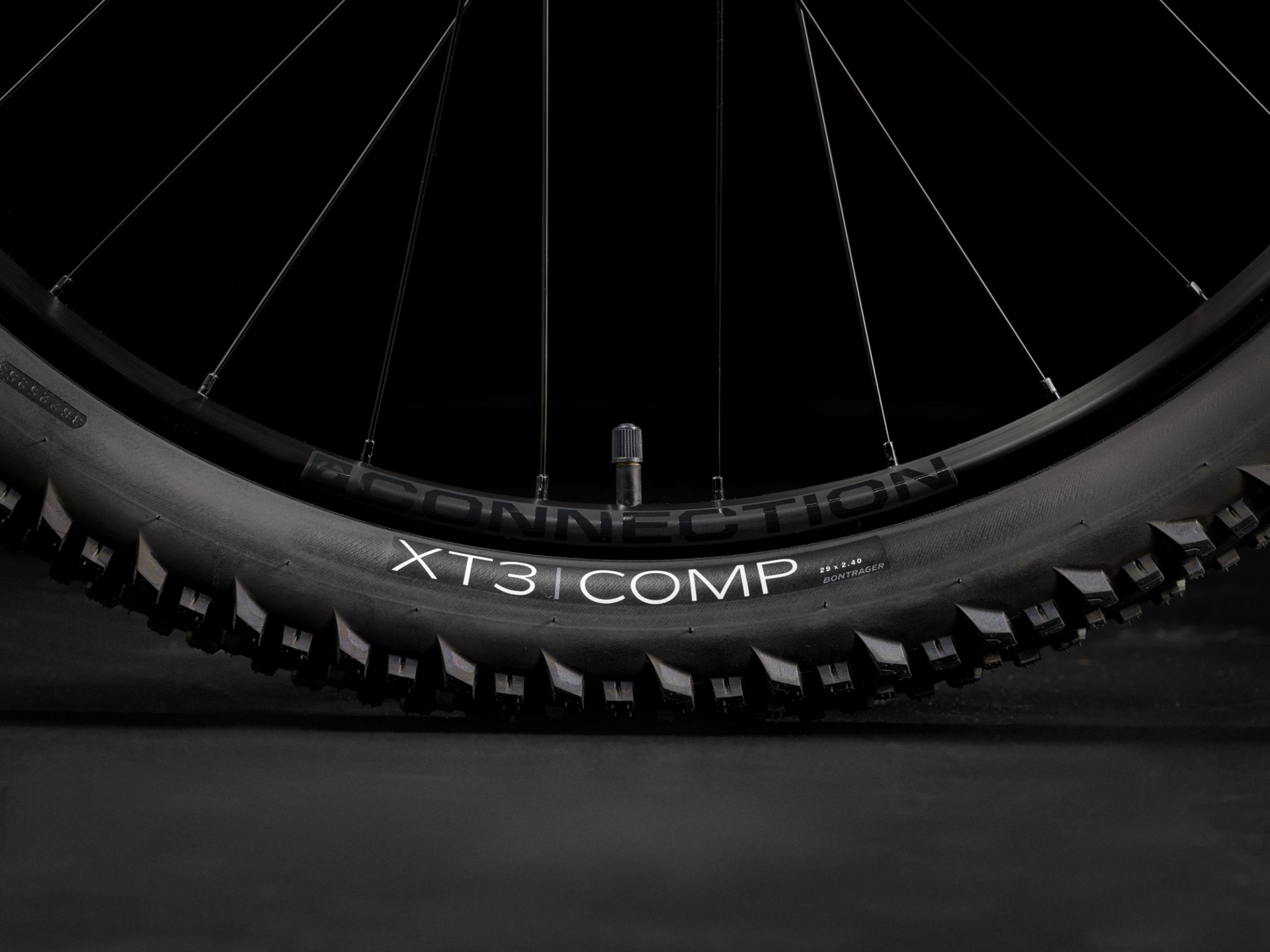

    Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40''
  • Tires Size M, ML, L, XL
    Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40''

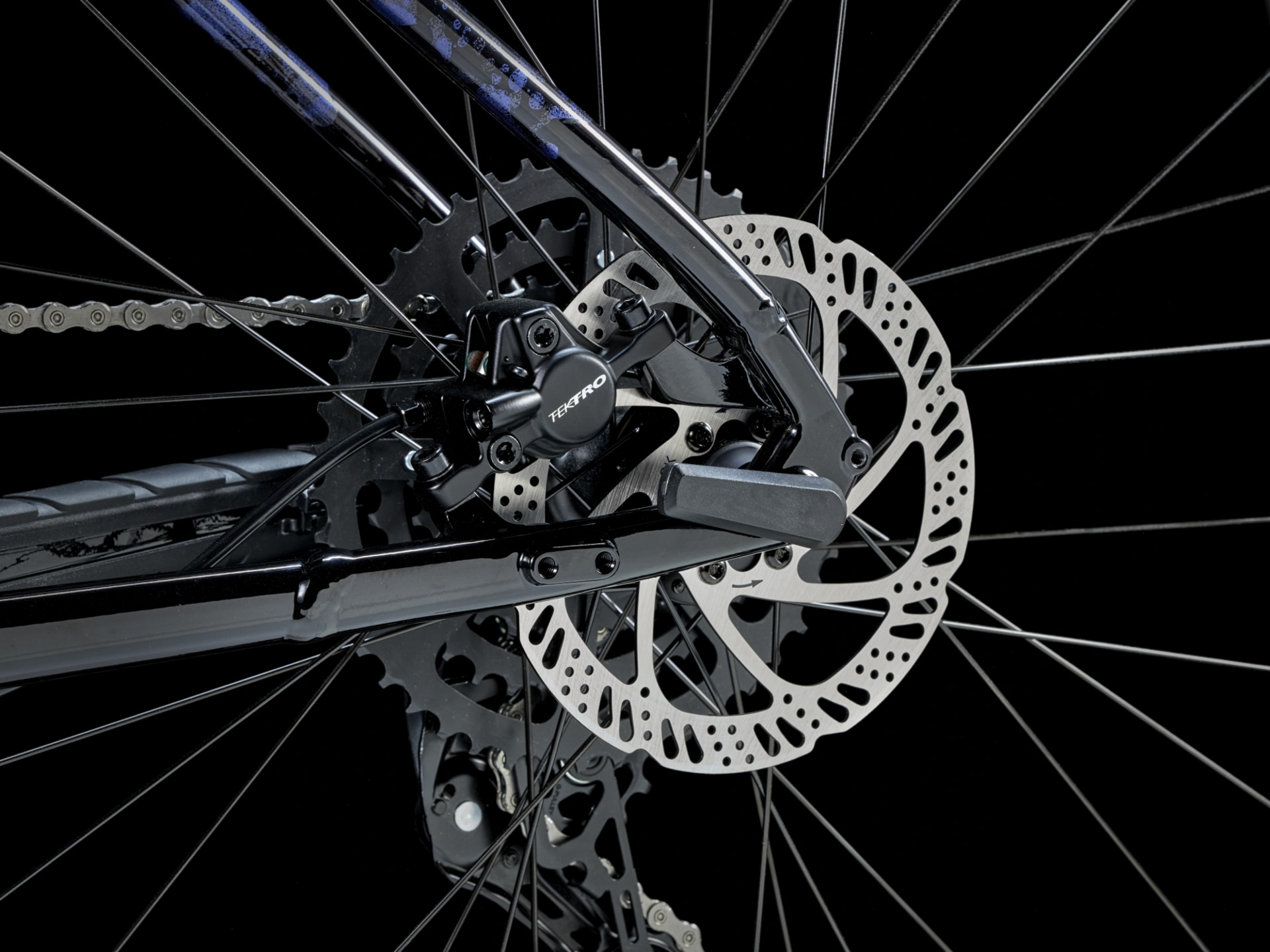

  • Brakes Size XS, S
    Tektro HD-M276 hydraulic disc, short reach
  • Brakes Size M, ML, L, XL
    Tektro HD-M275 hydraulic disc
  • Rotors
    Tektro, 6-bolt, 160mm
  • Headset
    Semi-integrated, 1-1/8''

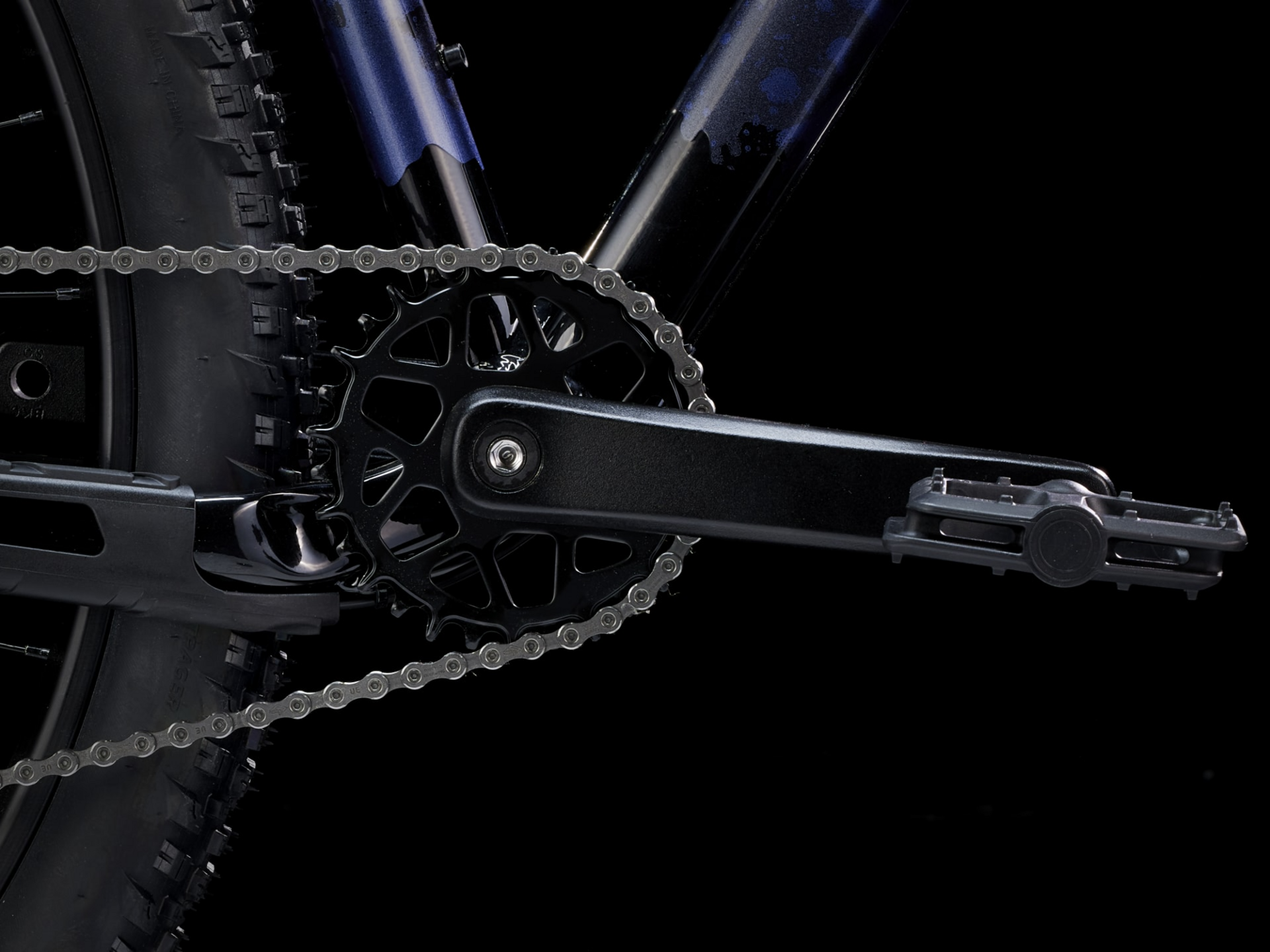

  • Crankset Size XS
    Prowheel C10Y-NW, 30T steel narrow-wide ring, 160mm length
  • Crankset Size S, M, ML, L, XL
    Prowheel C10Y-NW, 30T steel narrow-wide ring, 170mm length
  • Seatpost Size XS, S, M
    Bontrager alloy, 31.6mm, 12mm offset, 330mm length
  • Seatpost Size ML, L, XL
    Bontrager alloy, 31.6mm, 12mm offset, 400mm length
  • Shifters
    Shimano U4000, 9 speed
  • Handlebars Size XS
    Bontrager alloy, 31.8mm, 5mm rise, 690mm width
  • Handlebars Size S
    Bontrager alloy, 31.8mm, 15mm rise, 720mm width
  • Handlebars Size M, ML, L, XL
    Bontrager alloy, 31.8mm, 15mm rise, 750mm width
  • Tape/Grips
    Bontrager XR Trail Comp, nylon lock-on

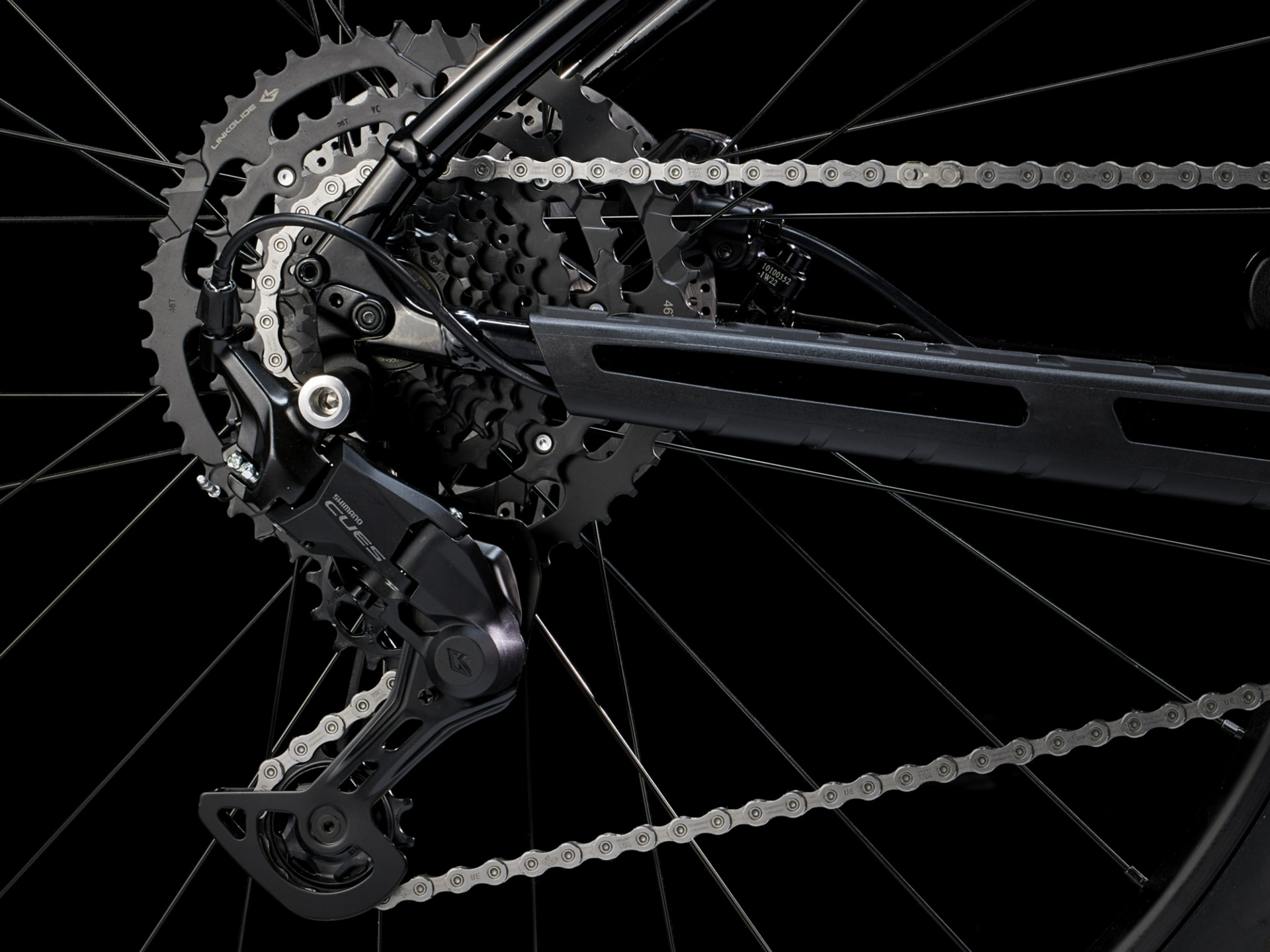

  • Rear Derailleur
    Shimano CUES U4000
  • Cassette/Freewheel
    Shimano LINKGLIDE LG300, 11-46, 9 speed
