Wheels Manufacturing T47 Inboard Bottom Bracket Angular Contact

Season:2017

Brand:Wheels Manufacturing

Code:CR0641

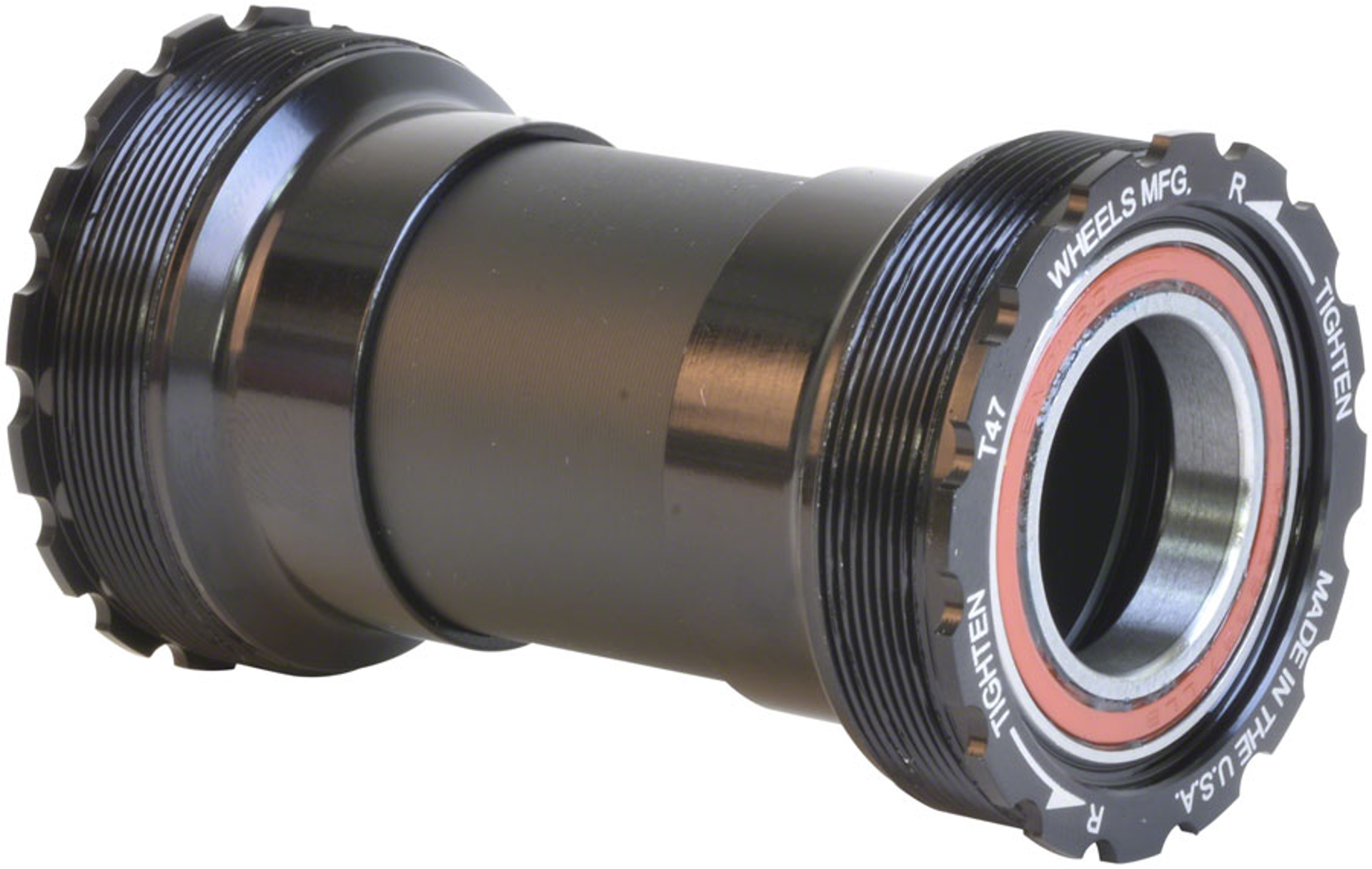

T47 inboard threaded bottom brackets are made from machined aluminum and thread together directly into T47 frames.

These cups feature internal bearings designed for use in bottom bracket shell widths ranging from 68mm to 132mm. High-quality Enduro bearings can be easily serviced or replaced, similar to standard BSA threaded cups.

Features:

  • Machined aluminum construction
  • Compatible with T47 frames
  • Suitable for shell widths from 68mm to 132mm
  • Drive side cup is left-hand thread
  • Non-drive side cup is right-hand thread
  • Serviceable Enduro bearings
Technical Information
  • Spindle interface type
    Shimano Hollowtech II, FSA MegaExo, FSA MegaExo Light, RaceFace EXI
  • BB shell width (mm)
    68, 86, 92, 104.5, 121, 132
  • Bottom bracket shell I.D.
    47
  • BB/frame interface
    T47
  • Weight
    119
