The Shimano Deore XT M8120 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston design instills greater downhill confidence and control.
The Shimano Deore XT M8120 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston design instills greater downhill confidence and control.
Shimano

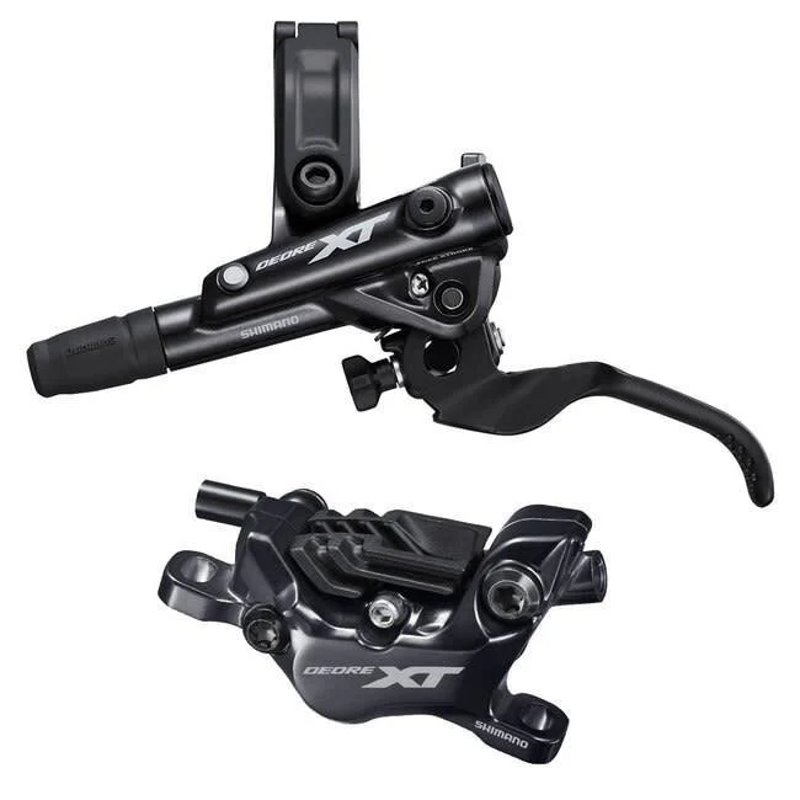

Shimano Deore XT M8120 4-Piston Disc Brake Assembly Front Left

$265.00
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Shimano Deore XT M8120 4-Piston Disc Brake Assembly Front Left

Season:CORE

Brand:Shimano

Code:IM8120JLF

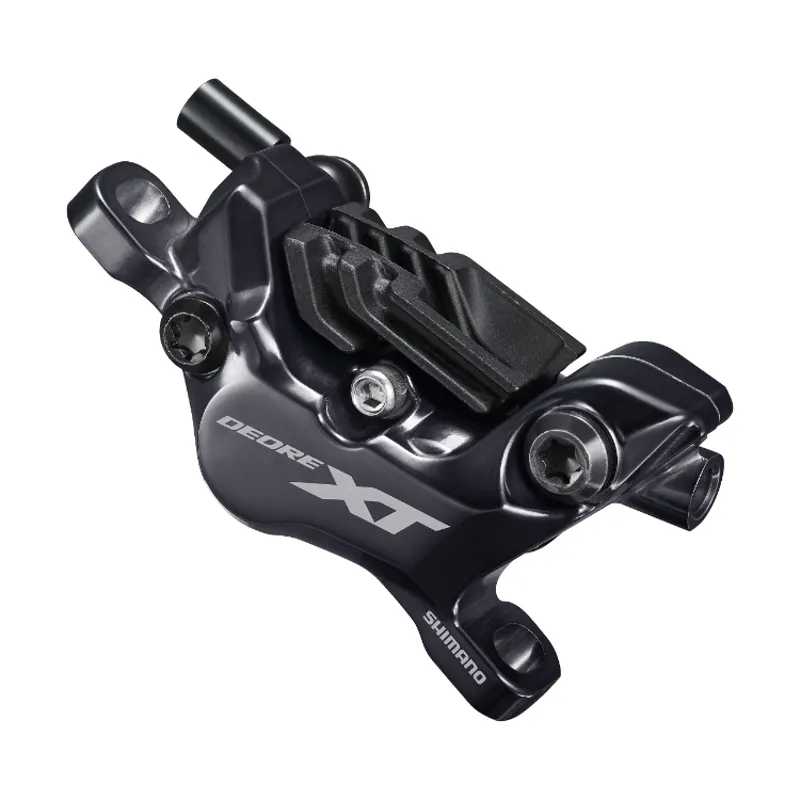

The Shimano Deore XT M8120 caliper provides consistent braking performance and reliable stopping power in all conditions.

The Shimano Deore XT M8120 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston caliper instills greater downhill confidence and control, offering superior modulation for greater control.

Features:

  • Quicker piston retraction
  • Reduces disc brake rotor wobbling noise and increases braking power by 10% (vs. M8000)
  • Four Piston
  • Banjo type connection and inside hose routing
Technical Information
  • Model no
    BR-M8120
  • Series
    DEORE XT
  • Brake type
    Hydraulic disc brake
  • Brake hose (kit)
    SM-BH90-SBM
  • Hose joint
    Banjo
  • Brake hose color (kit)
    1 Black
  • J-Kit spec (for OEM)
    Yes
  • ICE TECHNOLOGIES pad compatible caliper
    Yes
  • Pad standards
    Standard 1: N03A-RF Resin (w/ fin), Standard 2: N04C-MF Metal (w/ fin), Option 1: D03S-RX Resin (w/o fin), Option 2: D02S-MX Metal (w/o fin)
  • Recommended brake lever
    BL-M8100 BL-T8100
  • Recommended disc brake rotor
    RT-MT800
  • Compatible rotor size
    140 mm (SS), 160 mm (S), 180 mm (M), 203 mm (L), 220 mm (LL)
  • Oil
    SHIMANO mineral
  • Mount type
    Post type
  • Piston
    4
  • Caliper fixing screw tool size
    5 mm
  • Caliper fixing screw anti loosen method
    Snap ring
  • Pad mount
    Pad axle
  • Average weight
    141
