New for 2025, the Onyx Vesper MTB BOOST CL MS 148/12 Thru-bolt Rear Hub features bearings standardized to EZO.
New for 2025, the Onyx Vesper MTB BOOST CL MS 148/12 Thru-bolt Rear Hub features bearings standardized to EZO.
Onyx

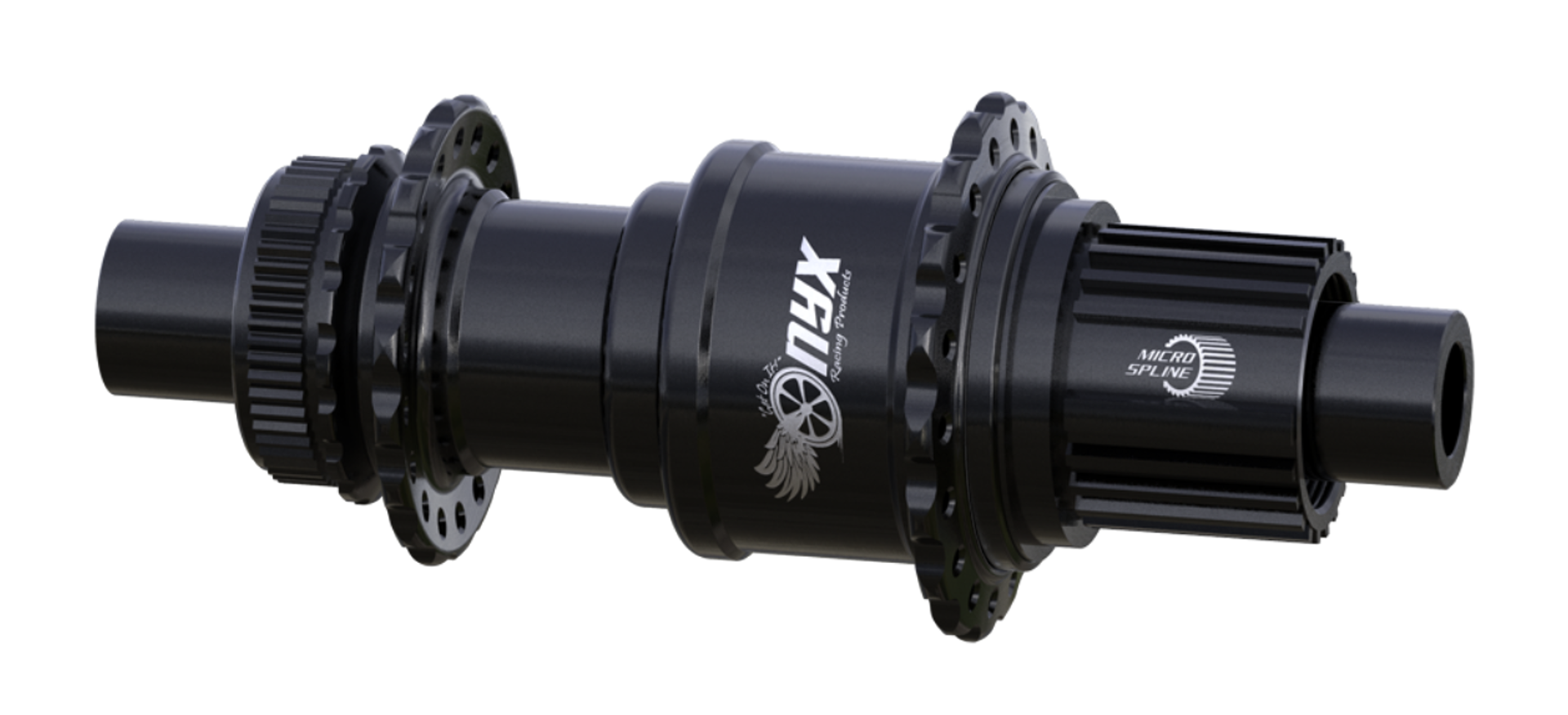

Onyx Vesper MTB BOOST CL MS 148/12 Thru-bolt Rear Hub

$525.00
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Onyx Vesper MTB BOOST CL MS 148/12 Thru-bolt Rear Hub

Season:SP26

Brand:Onyx

Code:102702

New for 2025, the Onyx Vesper MTB BOOST CL MS 148/12 Thru-bolt Rear Hub features bearings standardized to EZO.

The Onyx Vesper MTB BOOST CL MS 148/12 Thru-bolt Rear Hub is a new addition for 2025, featuring bearings that have been standardized to EZO.

Features:

  • Hub Center To Flange Center, Non-Drive Side: 36.9 mm
  • Hub Center To Flange Center, Drive Side: 22.47 mm
  • Axle Width: 148 mm
  • Spoke Hole Circle Diameter, Drive Side: 50.0 mm
  • Spoke Hole Circle Diameter, Non-Drive Side: 42.0 mm
Technical Information
  • Weight
    13.3 oz / 377 g
  • Dimensions - Approximate for shipping
    9.5 × 4.5 × 4 in
  • Hub type
    Rear
  • Axle width
    148 mm
  • Axle diameter
    12 mm
  • Spoke count
    24, 28, 32
  • Attach style
    Thru-bolt
  • Hub shell style
    Solid
  • Hub shell flange type
    J-Bend
  • Disc brake rotor mount
    Shimano® Center Lock
  • Driver style
    Shimano MICRO SPLINE
  • Spoke tension - Max
    120 kgf
  • Bearings
    EZO
  • Hub center to flange center, non-drive side
    36.9 mm
  • Hub center to flange center, drive side
    22.47 mm
  • Spoke hole circle diameter, drive side
    50.0 mm
  • Spoke hole circle diameter, non-drive side
    42.0 mm
